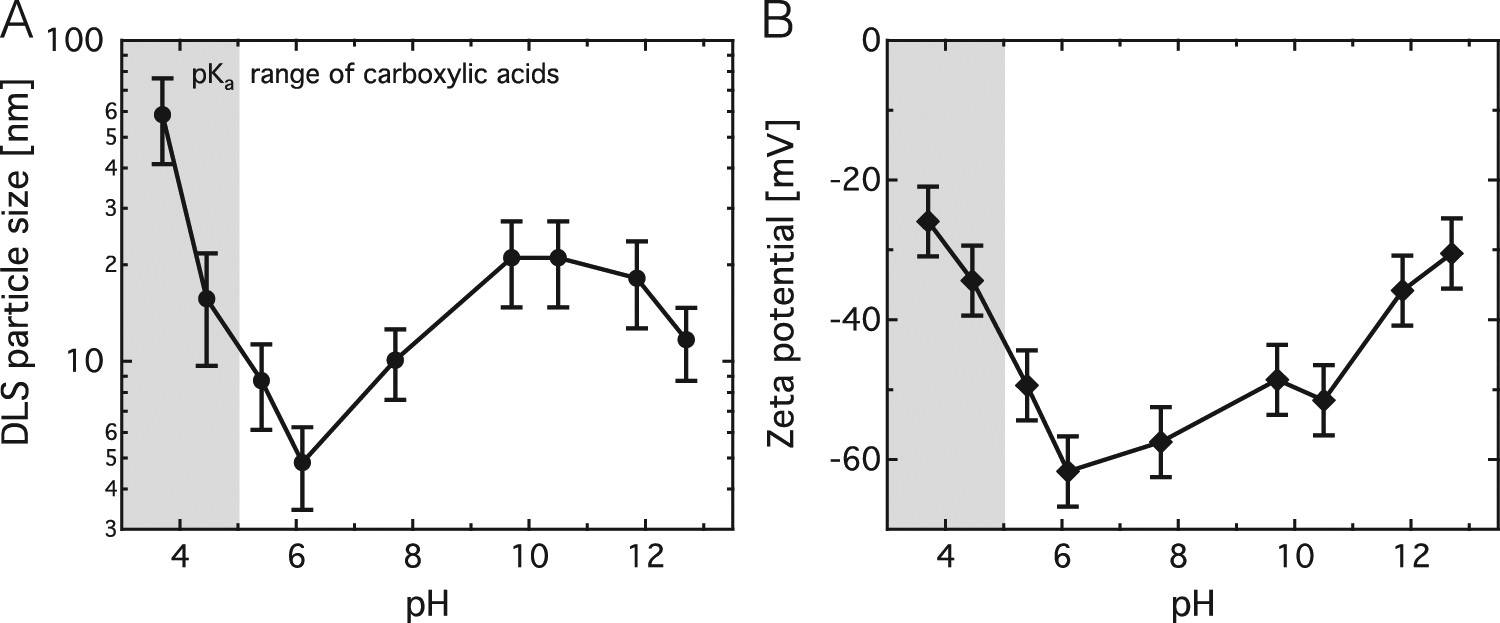

Figure 4
DND particle size and zeta potential as a function of pH. (A) Particle diameter determined via dynamic light scattering. (B) Zeta potential. Aqueous solutions of HCl and NaOH were used to adjust the pH. Light grey regions indicate the pKa range of carboxylic acids.
