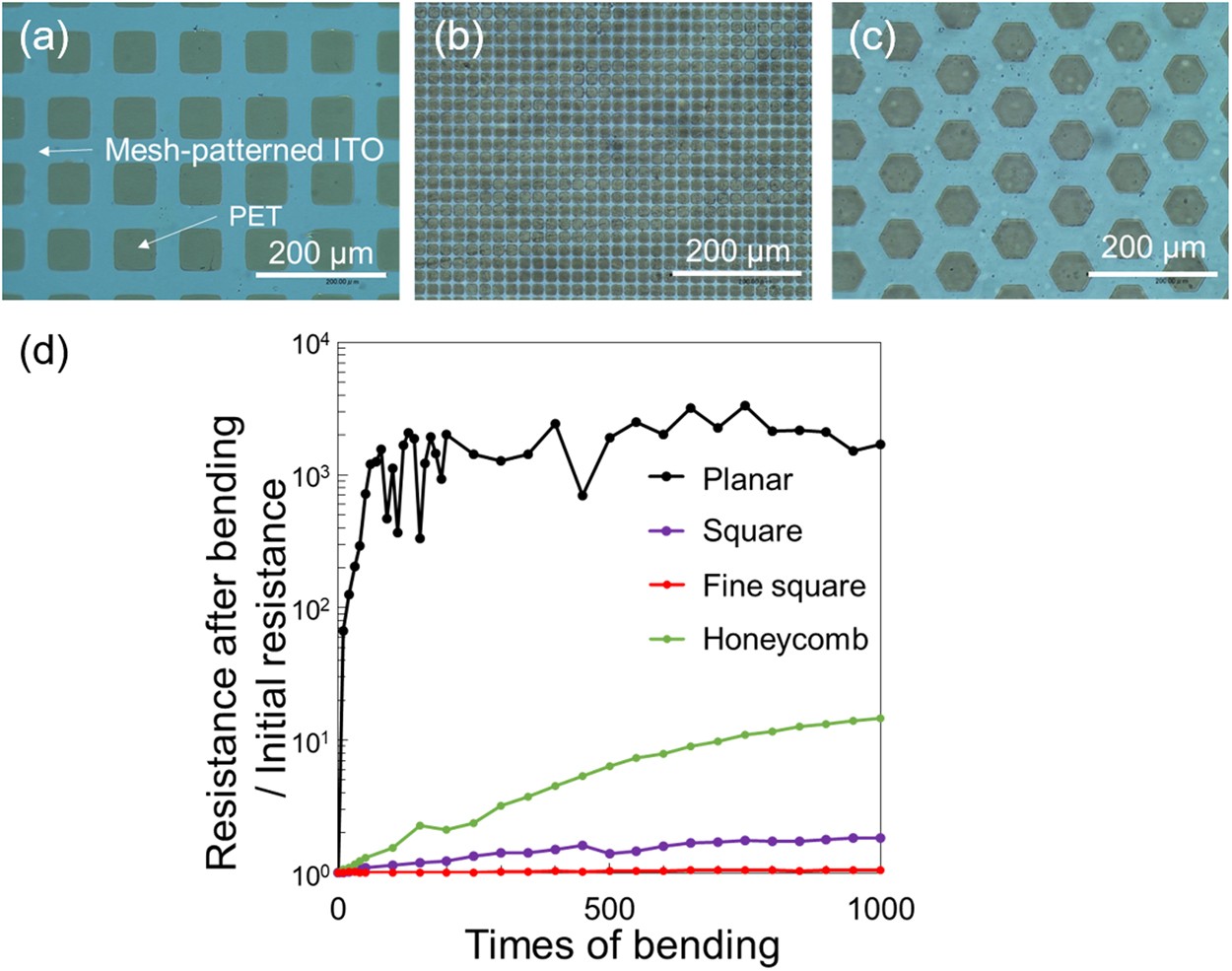

Figure 4
From: Highly flexible transparent electrodes based on mesh-patterned rigid indium tin oxide
Properties of fabricated mesh-patterned ITO electrodes. (a to c) are optical microscope images of a square, fine square and honeycomb mesh-patterned ITO electrodes, respectively. (d) Change of electrical resistance versus the number of bending cycles for ITO electrodes with and without mesh patterns.
