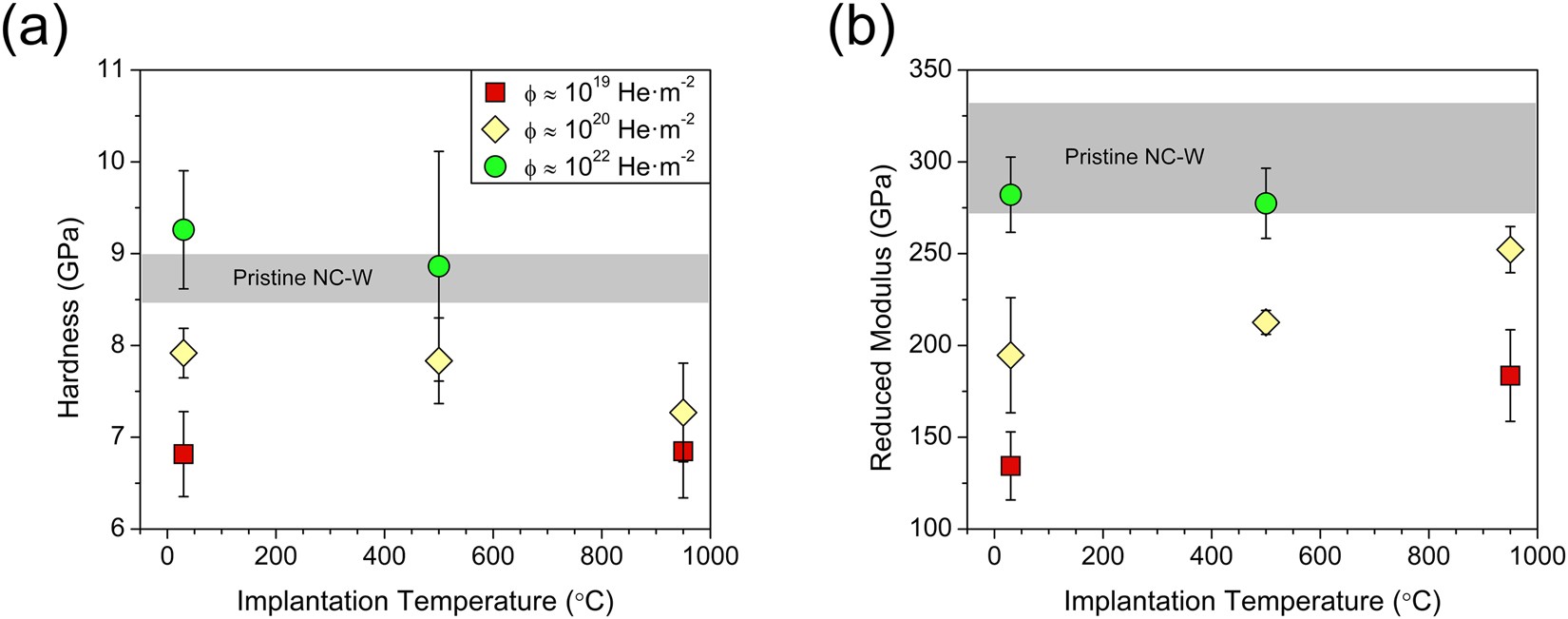

Figure 2

(a) Indentation hardness and (b) reduced modulus as a function of implantation temperature for a maximum indentation load of 3 mN. Data points are indexed based on fluence with the legend shown in (a), and ranges are included for pristine nanocrystalline tungsten.
