Figure 3
From: Electrical terahertz modulator based on photo-excited ferroelectric superlattice

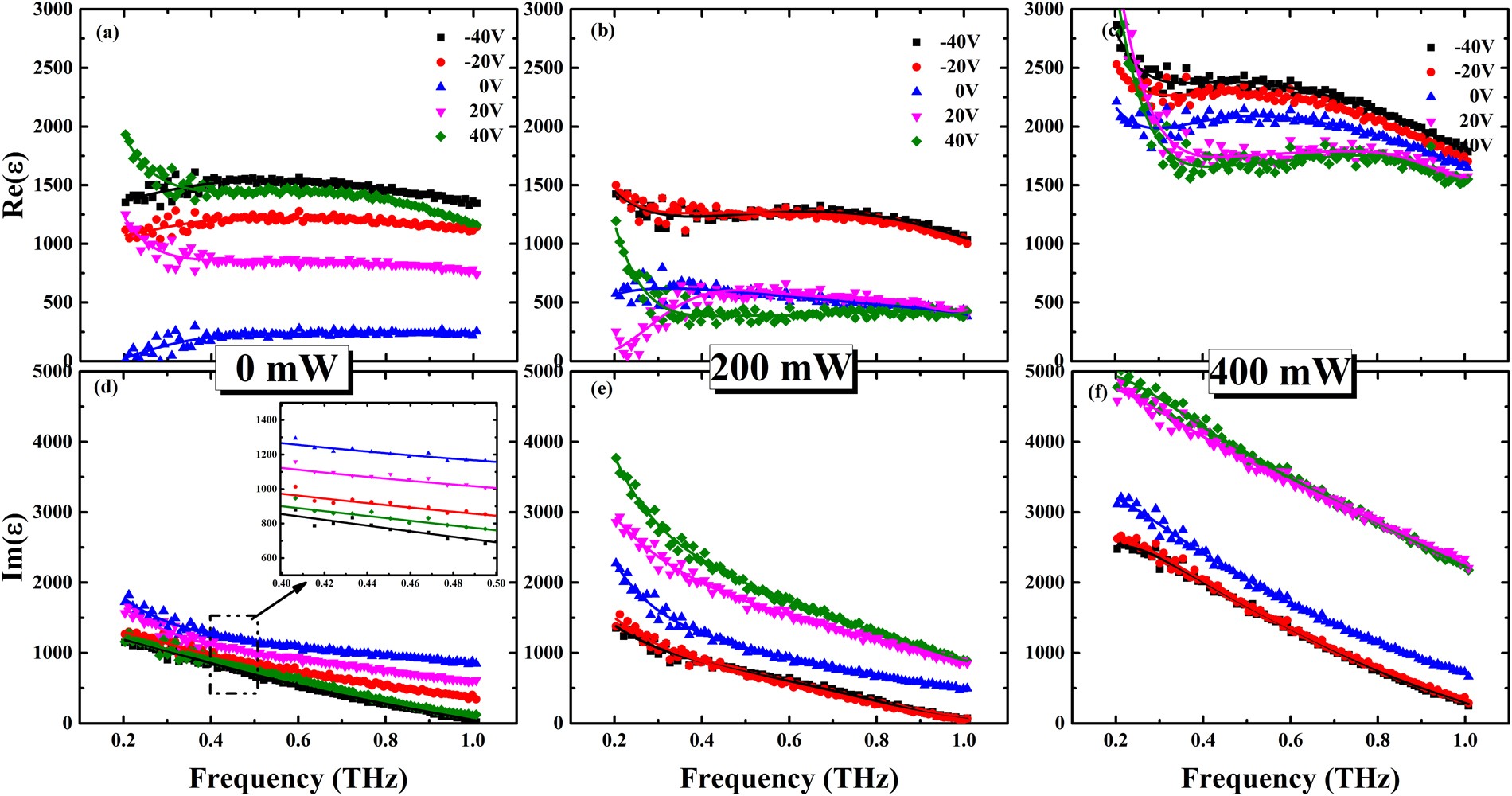

Measured permittivity of ferroelectric superlattice in the sample A. (a,b and c) Were measured real parts of dielectric constant biased at −40 V, −20 V, 0 V, 20 V, 40 V with the optical pump power of 0, 200 and 400 mW, respectively. (d,e and f) Were measured imaginary parts of dielectric constant corresponding to (a,b and c), respectively.
