Figure 3

From: In Silico Non-Homologous End Joining Following Ion Induced DNA Double Strand Breaks Predicts That Repair Fidelity Depends on Break Density

Figure 3

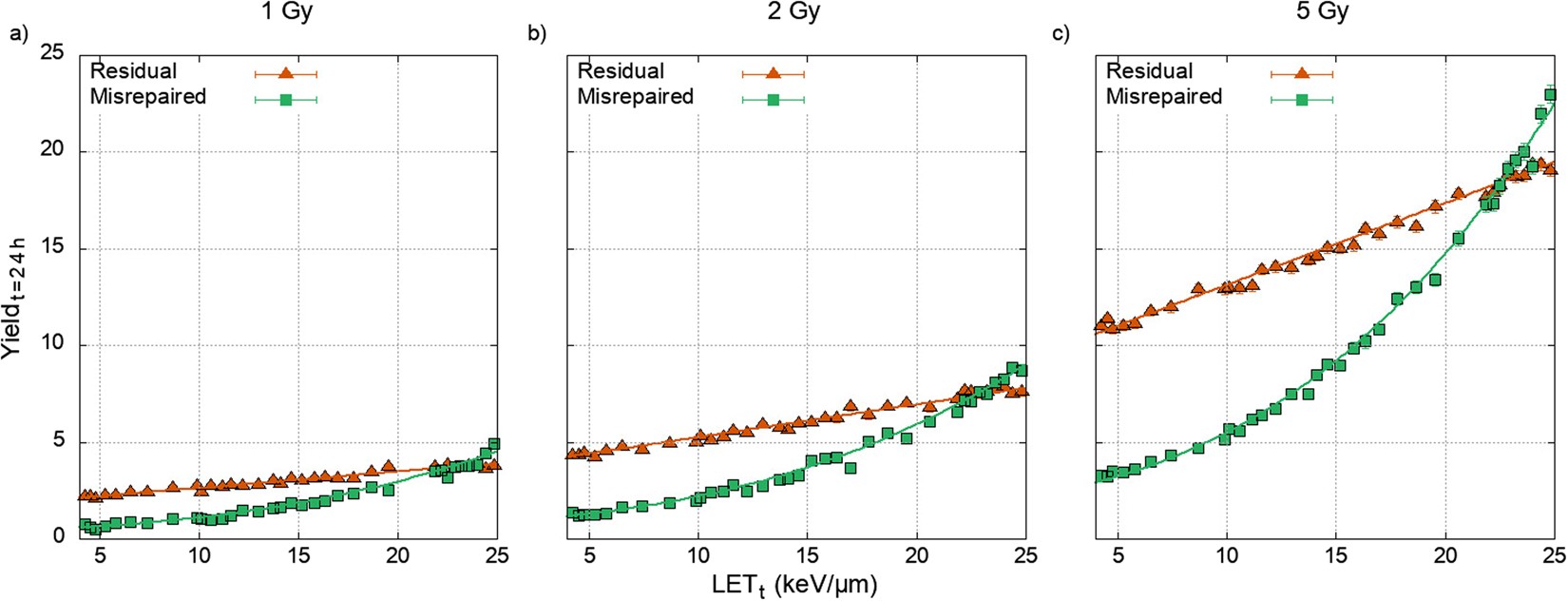

The correlation predicted yield of misrepaired, equation (5), and residual, equation (7), DSBs across the clinically relevant proton LETt range, with a constant dose of (a) 1 Gy, (b) 2 Gy, and (c) 5 Gy. Points show values measured within the simulation. Error bars in the yield are the standard error in the mean of 200 repeats. Error bars in the LETt are the standard error in the mean for 50,000 repeats. Both yield and LETt error bars are too small to be seen on this scale.
