Figure 3
From: Tuning of heat and charge transport by Majorana fermions

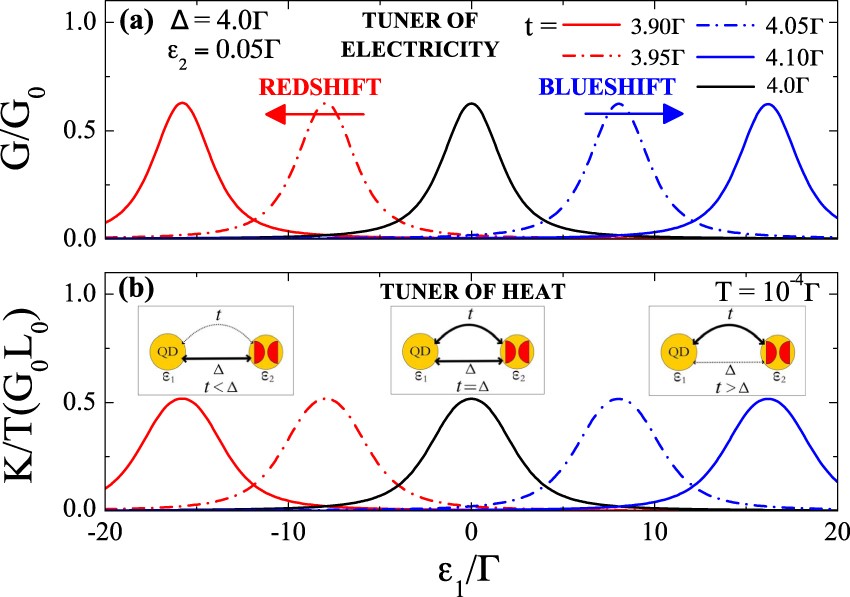

Electrical and thermal conductances as functions of the QD energy level outside SC-metallic boundary phase. Slight deviations from the condition t = Δ result in the shift of the resonance peak for the electrical (panel (a)) and thermal (panel (b)) conductances. The corresponding resonances are blueshifted for t > Δ and redshifted for t < Δ as compared to the case of the SC-metallic boundary phase. Insets show the equivalent circuit with auxiliary fermion d2 constructed from MFs η A and η B (red half-circles).
