Figure 5

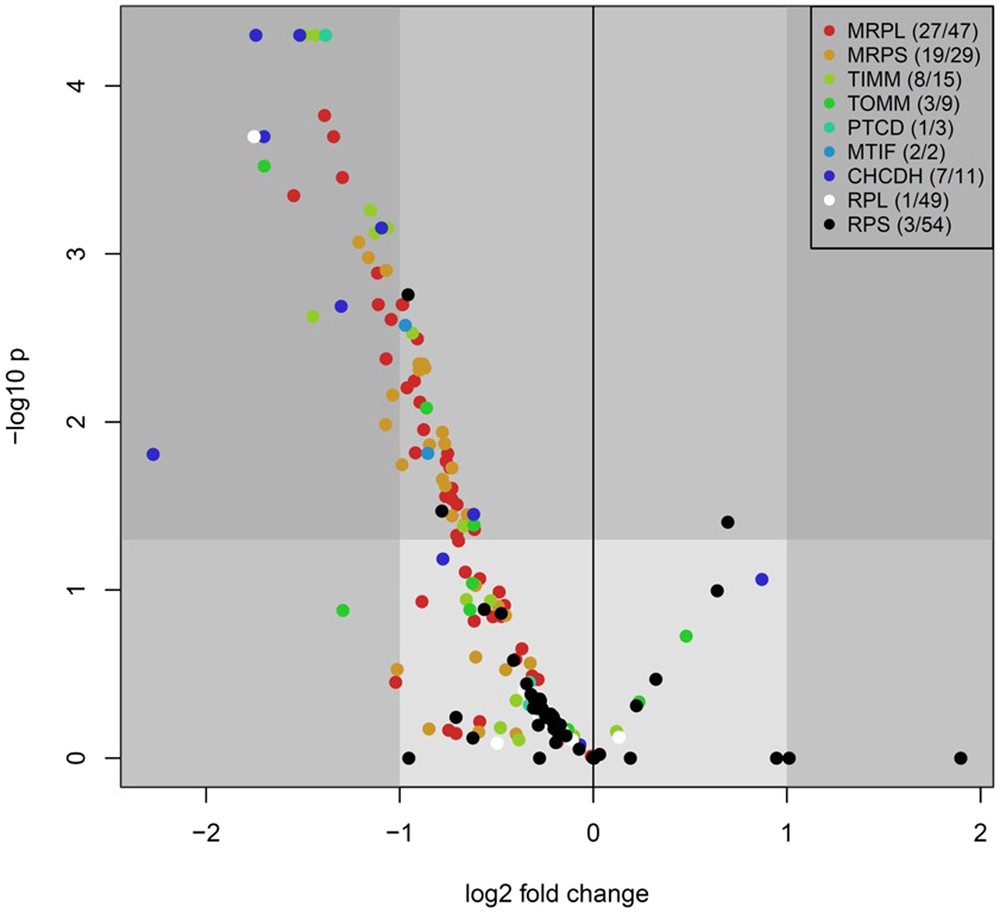

Parental diet affects the regulation of mitochondrial proteins. Differential gene expression pattern of mitochondrial proteins in low 1-C F1 male livers compared to control F1 male livers. Differential expression as reported by Cuffdiff, x-axis: log 2 fold change (low 1-C/control) of expression values, y-axis: −log10 p-values. Protein groups are indicated by color codes: mrpl (mitochondrial ribosomal proteins large subunit), mrps (mitochondrial ribosomal proteins small subunit), timm (translocase of inner mitochondrial membrane), tomm (translocase of outer mitochondrial membrane), ptcd (pentatricopeptide repeat domain), mtif (mitochondrial translation initiation factor), chcdh (coiled-coil-helix-coiled-coil-helix domain containing). White and black points indicate the non-mitochondrial rpl (cytoplasmic ribosomal proteins large subunit) and rps (cytoplasmic ribosomal proteins small subunit) proteins respectively included for contrast. Dark grey shading indicates p < 0.05 and a fold change greater than 2.
