Figure 6

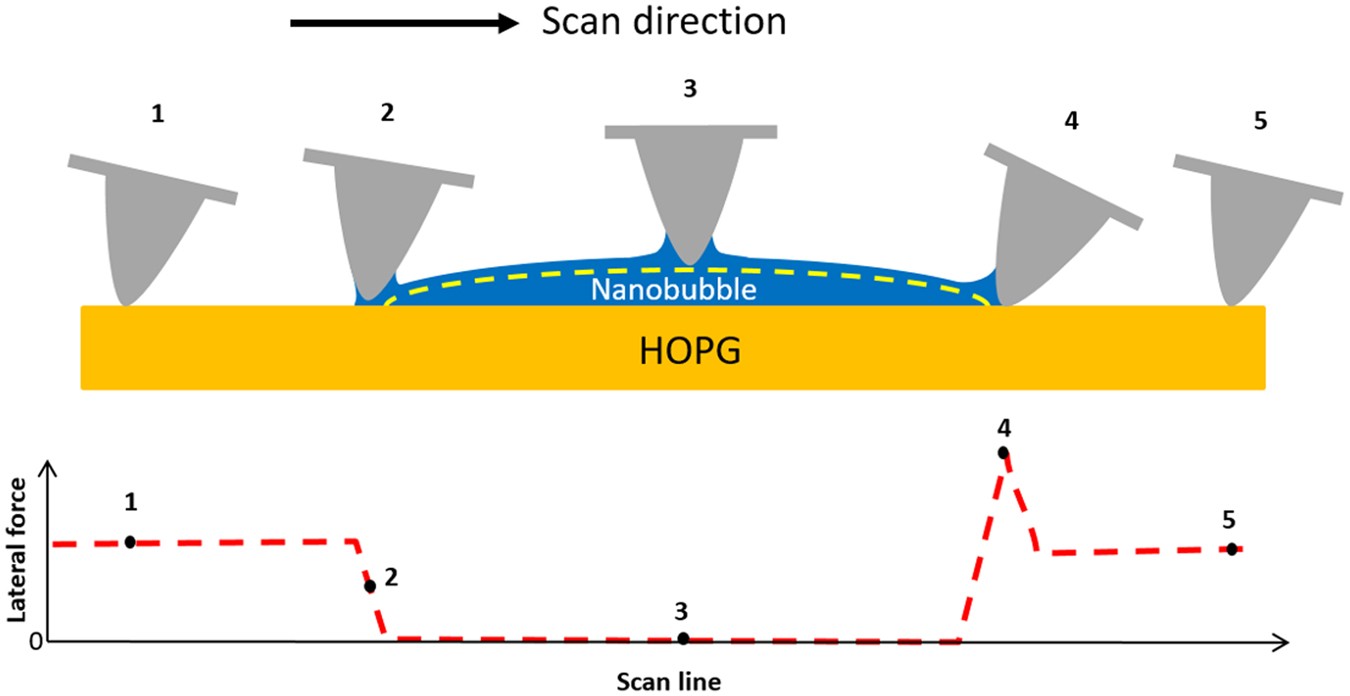

Schematic showing the lateral force experienced by an AFM tip when sliding across a hydrophobic surface with presence of an INB. The yellow dashed line indicates the profile of the INB traced by the scanning tip. The corresponding lateral force along the scan line is shown at the bottom. The medium (water) is not illustrated.
