From: Microarray profile of circular RNAs identifies hsa_circ_0014130 as a new circular RNA biomarker in non-small cell lung cancer

Figure 3

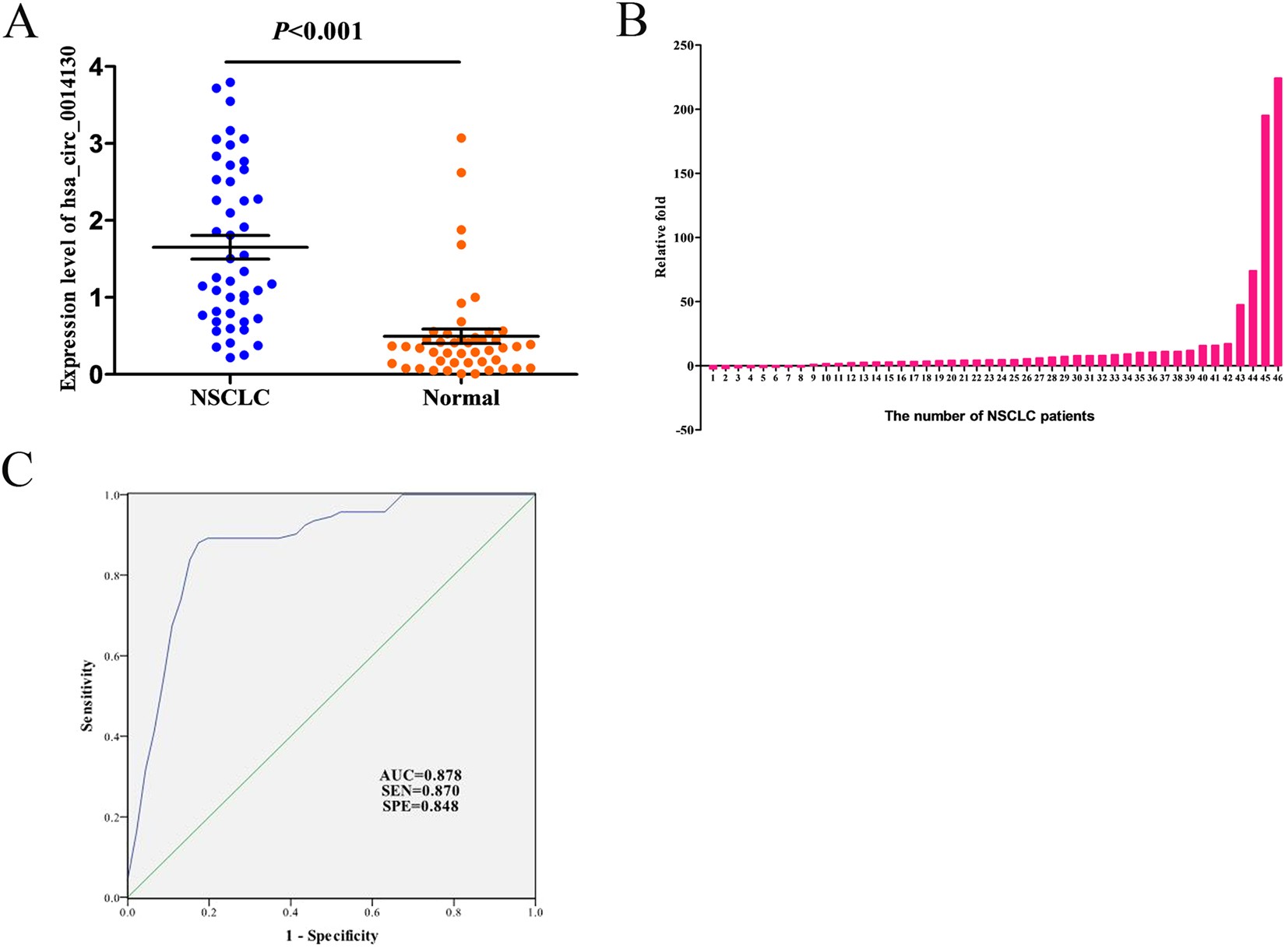

Hsa_circ_0014130 significantly upregulated in cancer tissues could serve as a biomarker for NSCLC. (A) The expression levels of hsa_circ_0014130 in the NSCLC group are significantly higher than those in corresponding non-cancerous tissues (n = 46) (P < 0.001). (B) Hsa_circ_0014130 levels were significantly upregulated in 82.6% (38/46) of NSCLC tissues. (C) Receiver operating characteristic (ROC) curve of hsa_circ_0014130 was built for differentiating NSCLC tissues from controls. The area under curve was 0.878. The cutoff value was 0.573, and the sensitivity and specificity were 87.0% and 84.8%, respectively (P < 0.001).
