Figure 4

From: Proximity of breeding and foraging areas affects foraging effort of a crepuscular, insectivorous bird

Figure 4

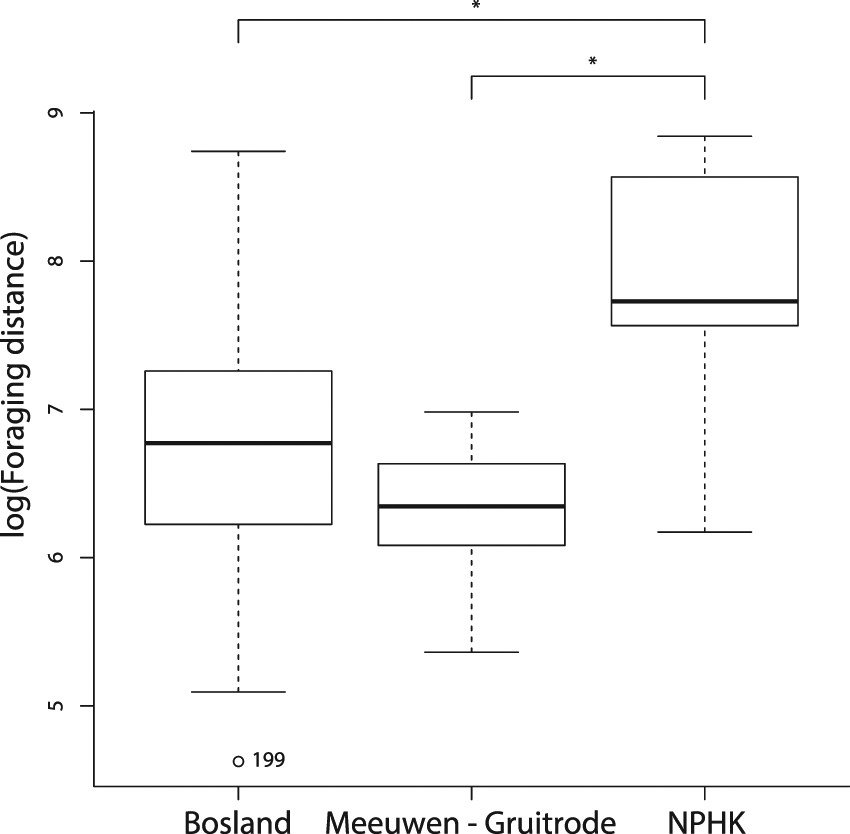

Foraging distances in the Mechelse Heide (National Park Hoge Kempen, NPHK) (3345 ± 1921m, original scale) are significantly longer compared with those in Bosland (1201 ± 1059 m; t = 3.90, p = 0.0004) and in the military area of Meeuwen-Gruitrode (593 ± 271 m; t = 3.60, p = 0.0012). Boxplots show log-transformed foraging distances with median (thick black line), 25% and 75% quantiles (thin box), 90% range (whiskers) and outliers. P-values are based on post-hoc (LMM) Tukey-corrected pairwise t tests (Table 1, Model 4).
