From: Proteome analysis of Aspergillus flavus isolate-specific responses to oxidative stress in relationship to aflatoxin production capability

Figure 3

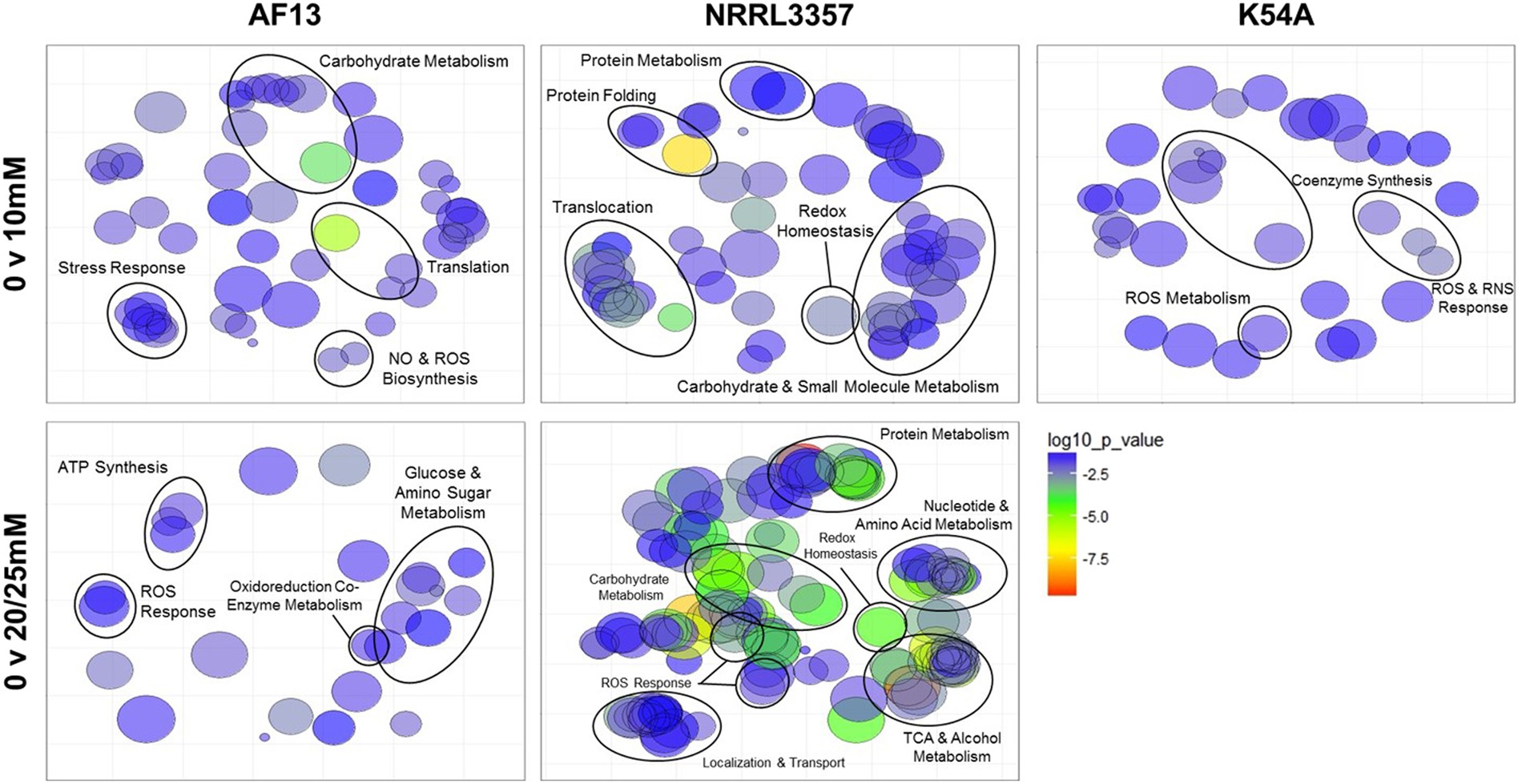

Gene ontology (GO) enrichment for protein biological functions under increasing levels of oxidative stress. Biological function GO term enrichment analysis was performed using REVIGO for DEPs obtained from each isolate and treatment. The size of each GO term is indicative of the relative number of DEPs corresponding to each term. The color of each GO term corresponds to the log10 p-values obtained for each GO term enrichment which are indicated on the scale.
