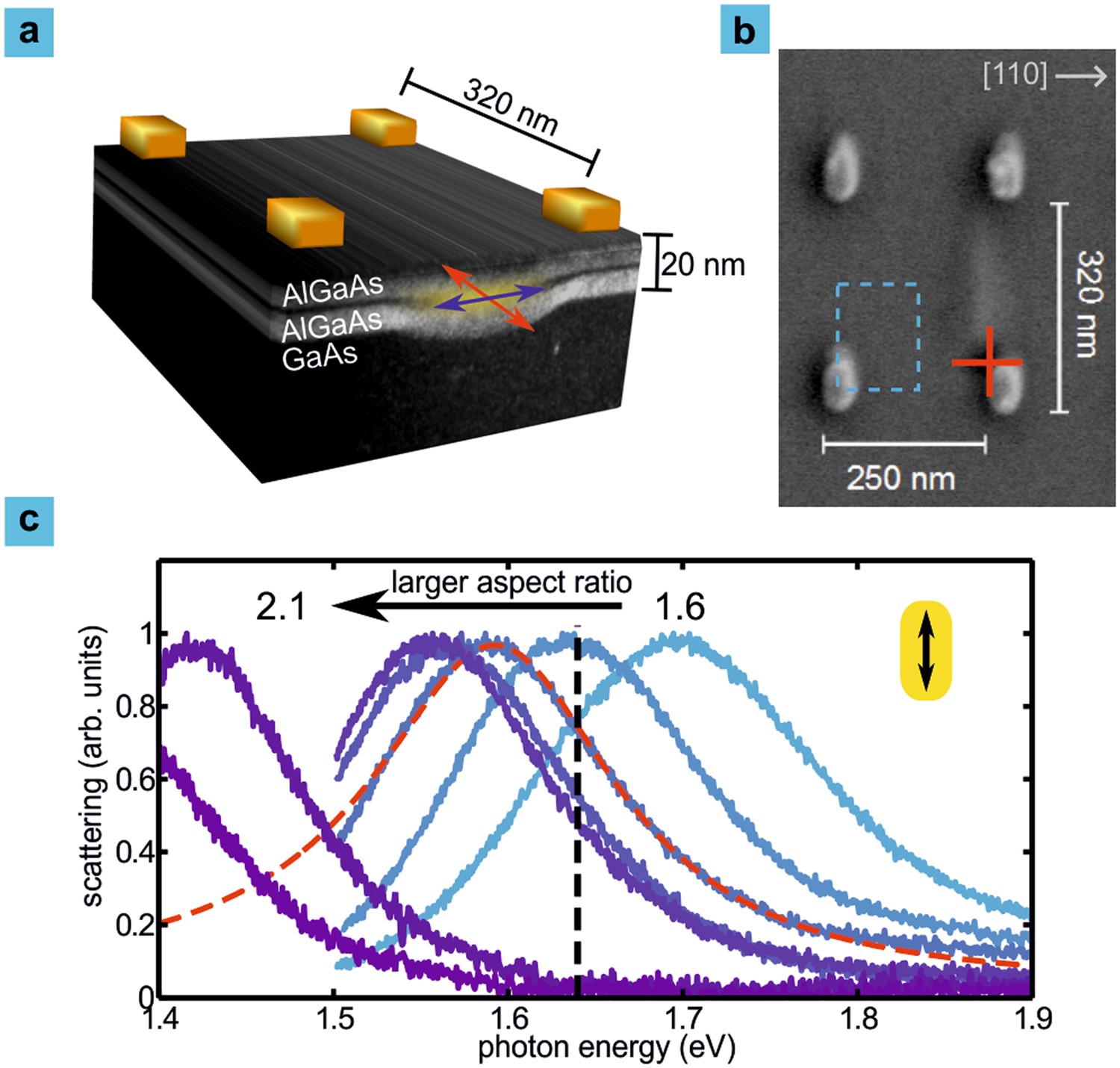

Figure 1
From: Coupling a single solid-state quantum emitter to an array of resonant plasmonic antennas
Excitons in GaAs quantum dots couple to plasmons in a rectangular array of gold nanorods. (a) Arrays of rectangular nanoantennas are fabricated on near-surface GaAs quantum dots. The unit cells of the arrays are centered on the antenna elements. The orientations of the dipole moments associated with the two bright neutral exciton transitions are shown with blue and red arrows. (b) A characteristic topography feature is visible above the quantum dots in scanning electron micrographs (red cross). The x-axis corresponds to the [110] crystal direction. A quarter of the unit cell is indicated by the blue dashed frame. (c) We tune the longitudinal plasmon resonance of the array (solid lines) through the quantum dot exciton transition (black dashed line) by varying the nanorod aspect ratio. The nanoantenna scattering spectra are well represented by a Lorentzian fit (dashed red line).
