Figure 2
From: Coupling a single solid-state quantum emitter to an array of resonant plasmonic antennas

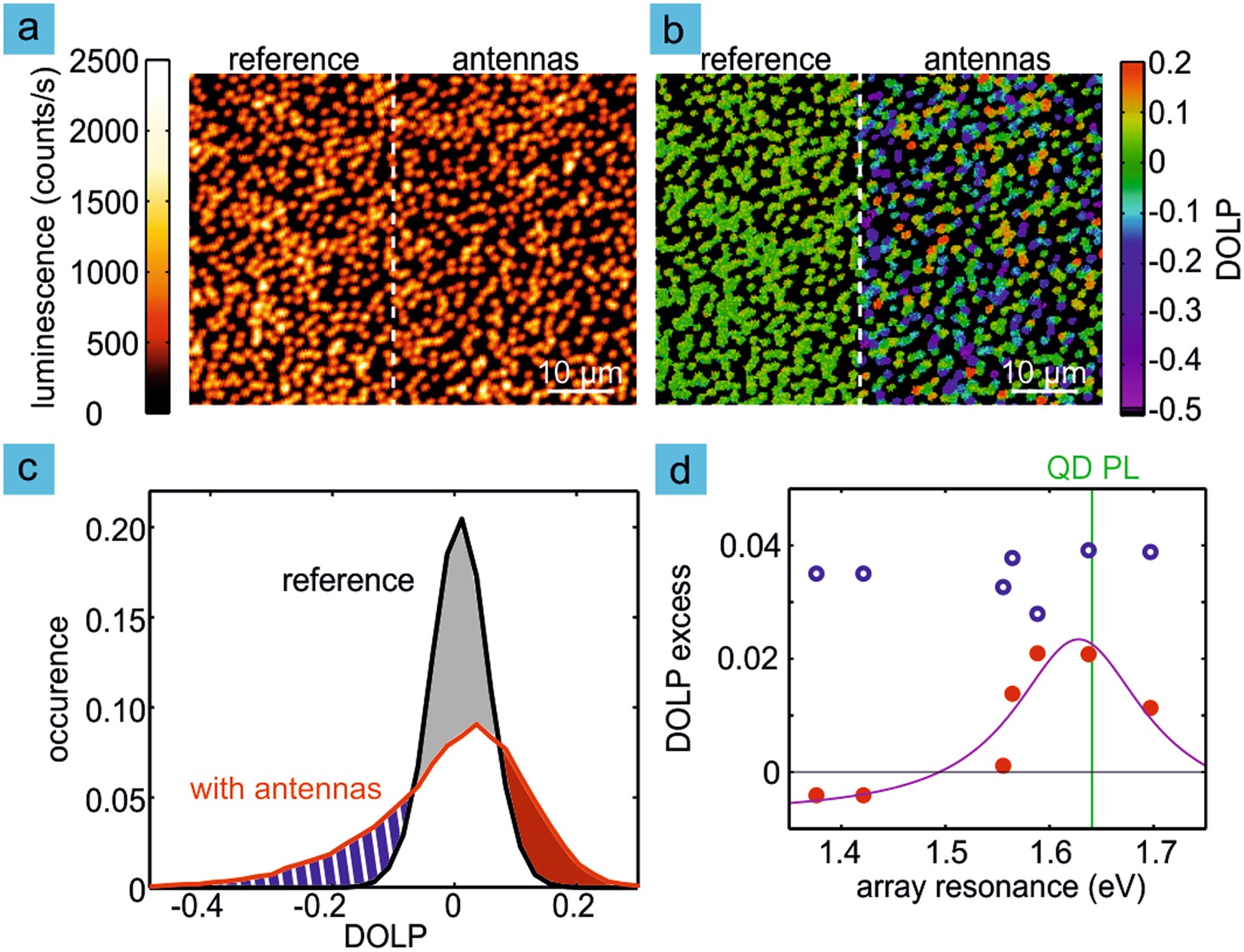

Coupling to an array of optical antennas results in modified photoluminescence. (a) The total emitted photoluminescence shows only small differences between the sample areas with and without optical antennas. (b) For the same area the degree of linear polarization (DOLP) varies significantly due to the plasmonic nanostructures. (c) The histogram of DOLP values is significantly broadened for the sample area with optical antennas (red) as compared to the reference region (black). A fraction of the reference distribution (gray shading) is shifted to negative and positive values (blue and red shading, respectively). The data in (b) and (c) is for the array with longitudinal plasmon resonance tuned to the emission of the quantum dots as evidenced by the scattering spectrum shown in Fig. 1c (black dashed line indicates the quantum dot emission). (d) We quantify the influence of the resonance position in terms of excess in the positive (red circles) or negative (blue circles) part of the DOLP histogram. The wavelength dependence of the positive excess follows a Lorentzian curve centered on the quantum dot emission while the negative excess is almost wavelength independent.
