Figure 2
From: Human antibody responses against non-covalently cell wall-bound Staphylococcus aureus proteins

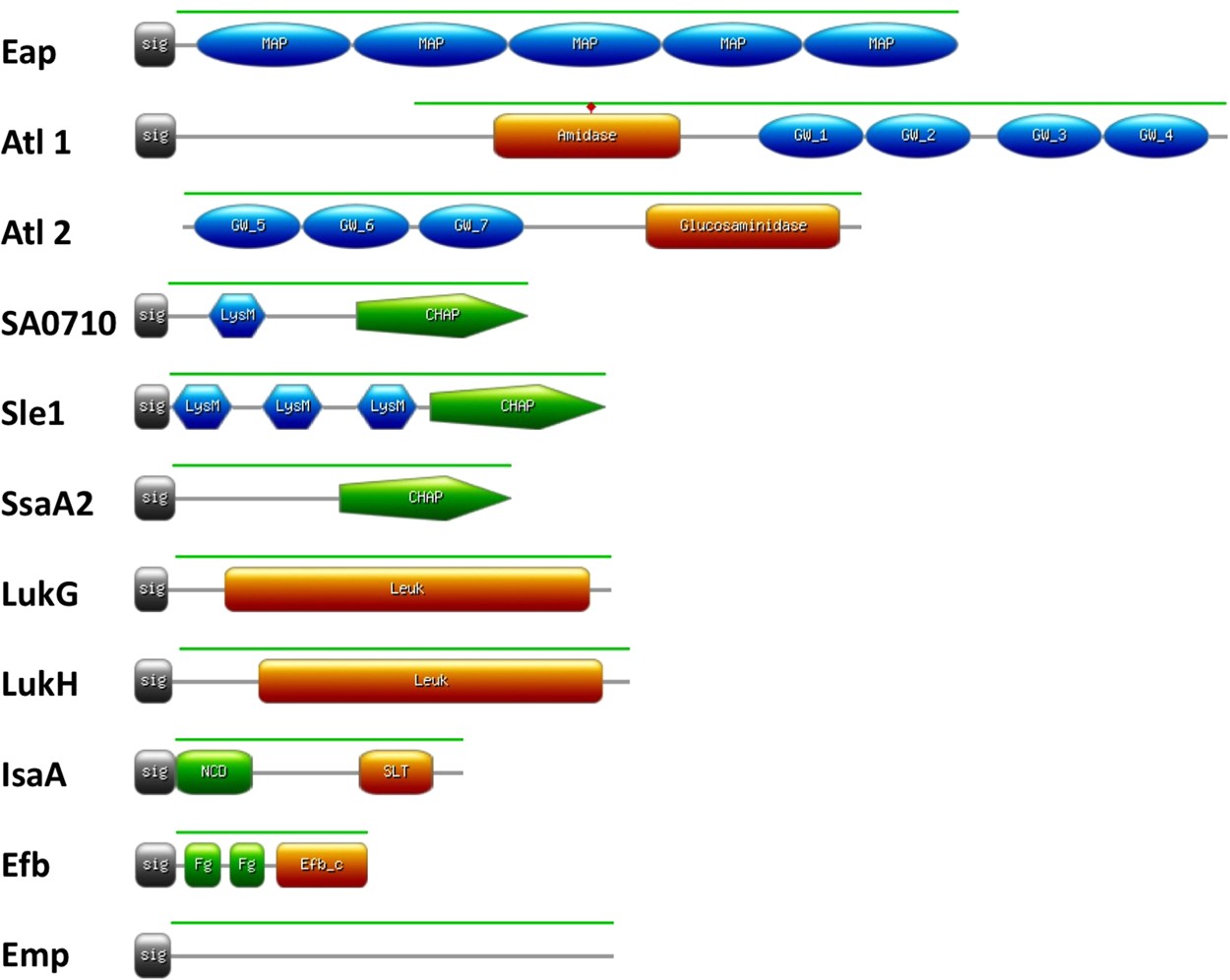

Motif composition of non-covalently cell wall-bound proteins of S. aureus. The proteins shown are: the extracellular adherence protein Eap (SAOUHSC_02161); the bifunctional autolysin Atl (SAOUHSC_00994), of which the Atl1 (N-acetylmuramoyl-L-alanine amidase) and Atl2 (Endo-beta-N-acetylglucosaminidase) domains were separately expressed; the CHAP and LysM domain-containing protein SA0710 (SAOUHSC_00773); the N-acetylmuramoyl-L-alanine amidase Sle1 (SAOUHSC_00427); the staphylococcal secretory antigen SsaA2 (SAOUHSC_02571); the gamma-hemolysin subunit B LukG (SAOUHSC_02241); the leukocidin LukH (SAOUHSC_02243); the probable transglycosylase IsaA (SA2356); the fibrinogen-binding protein Efb (SAOUHSC_01114); and the extracellular matrix protein-binding protein Emp (SAOUHSC_00816). Sig, signal peptide; MAP, MAP repeat profile (PROSITE: PS51223); amidase, N-acetylmuramoyl-L-alanine amidase (Pfam: PF01510); glucosaminidase, endo-beta-N-acetylglucosaminidase (Pfam: PF01832); GW, GW domain profile (PROSITE: PS51780); LysM, LysM domain profile (PROSITE:PS51782); CHAP, CHAP domain profile (PROSITE: PS50911); Leuk, Leukocidin/Hemolysin toxin family (Pfam: PF07968); NCD, N-terminal conserved domain; SLT, Transglycosylase SLT domain (Pfam: PF01464); Efb_c, extracellular fibrinogen binding protein C terminal (Pfam: PF12199); Fg, fibrinogen-binding motifs63. The green line represents amino acid residues selected for cloning and expression.
