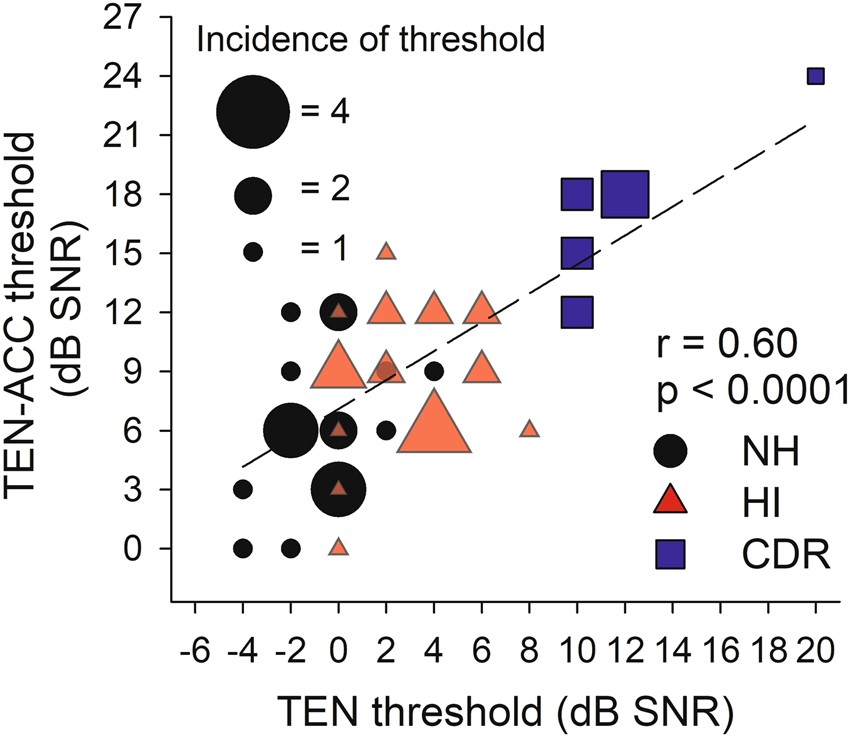

Figure 5
From: Objective Test of Cochlear Dead Region: Electrophysiologic Approach using Acoustic Change Complex
The graph shows correlation between behaviorally and electrophysiologically obtained thresholds. The two thresholds showed moderate-to-strong correlation (r = 0.60, p < 0.0001). The black symbols indicate data of normal subjects, the red symbols indicate results of hearing-impaired subjects without CDR, and the blue symbols indicate results of hearing-impaired subjects with CDR.
