Figure 8
From: Use of SU8 as a stable and biocompatible adhesion layer for gold bioelectrodes

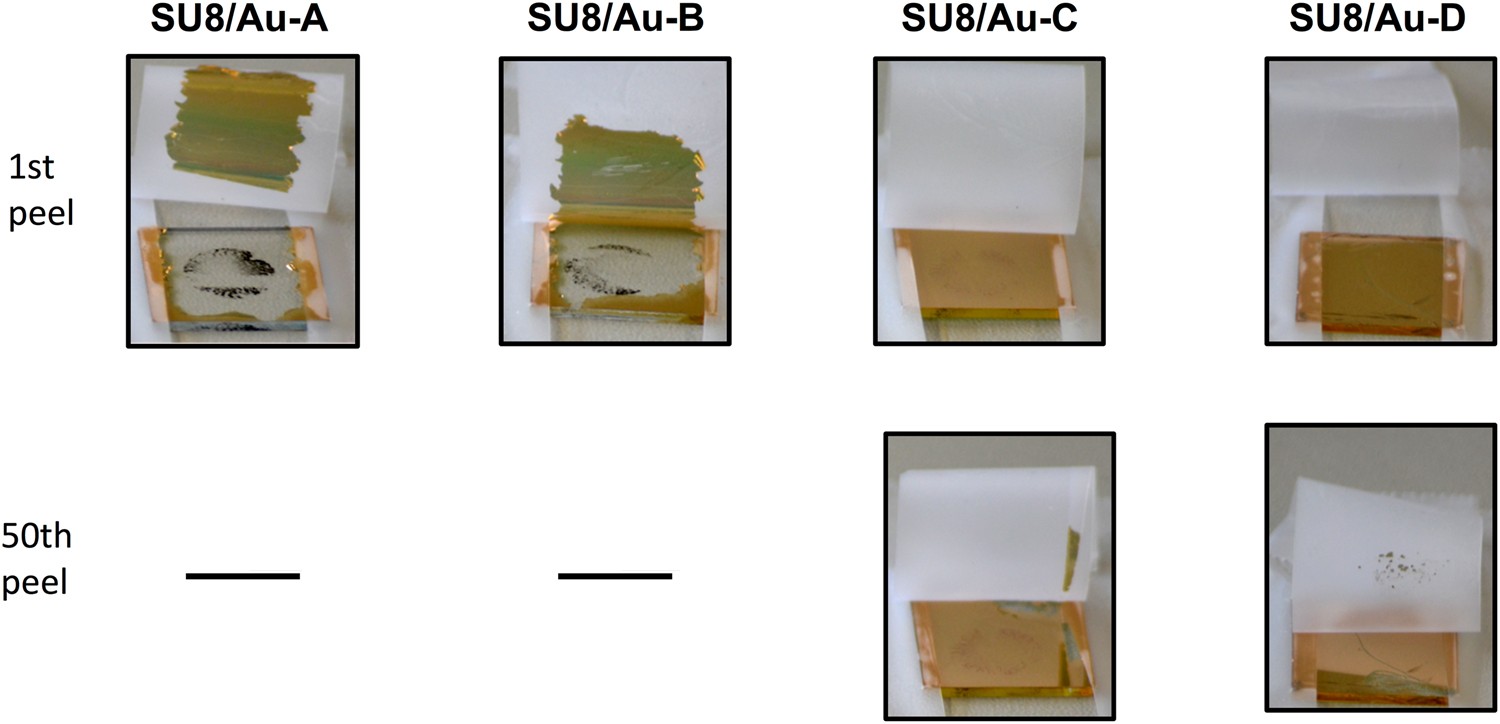

Images of SU8/Au films prepared according to protocols A to D in Fig. 3 after one peeling step (1st row) and fifty peeling steps (2nd row) using adhesive tape. In the case of SU8/Au-A and SU8/Au-B, images are shown only for the first peeling step due to immediate damage to the films.
