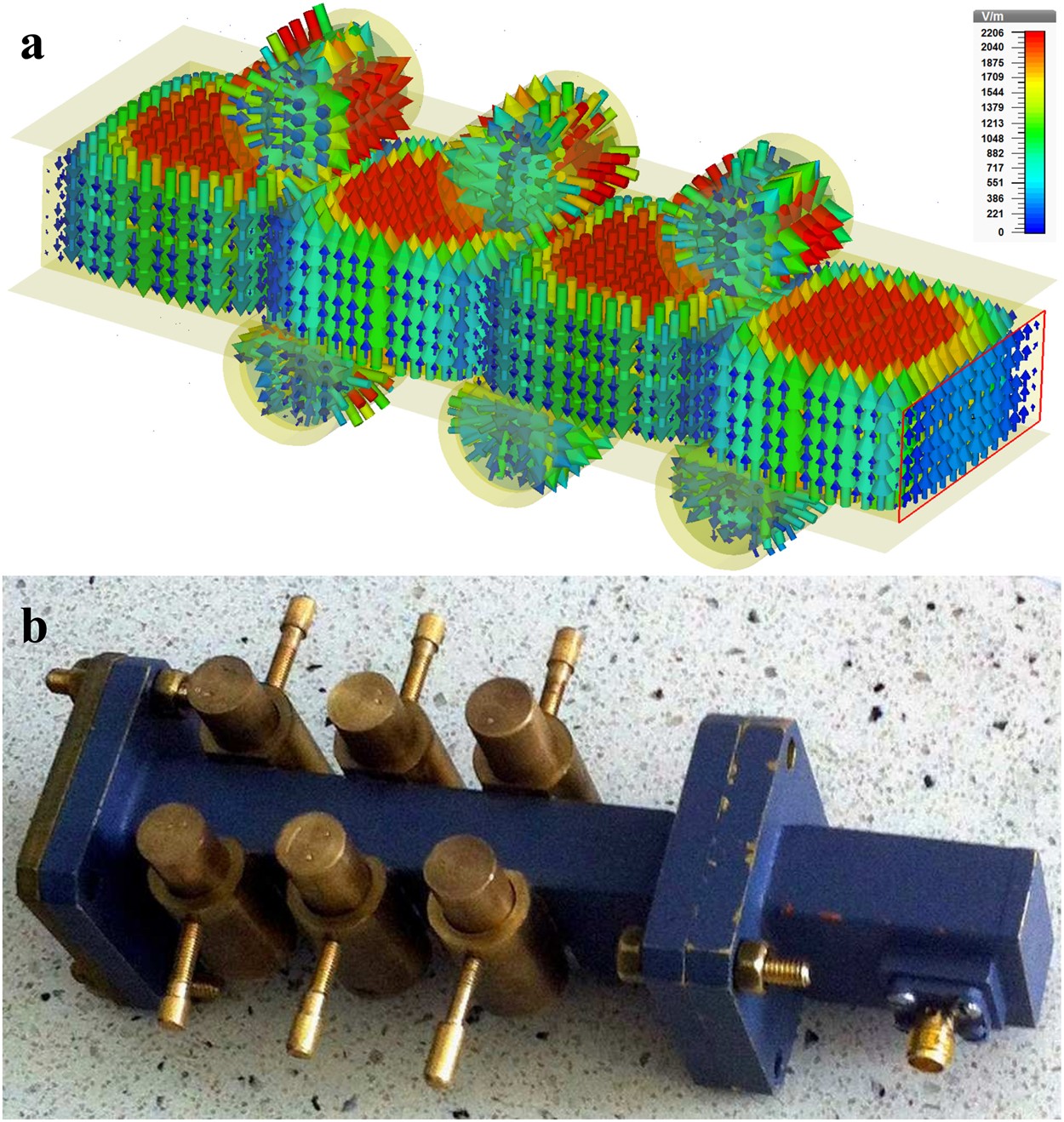

Figure 3
(a) Simulation of the microwave field in the QMI system using the “CST Studio Suite 2015” program. The color arrows show the amplitude of the electric field strength in the resonators. (b) Fabricated setup used in our experiments.
