Figure 4

From: Understanding the Structure, Multimerization, Subcellular Localization and mC Selectivity of a Genomic Mutator and Anti-HIV Factor APOBEC3H

Figure 4

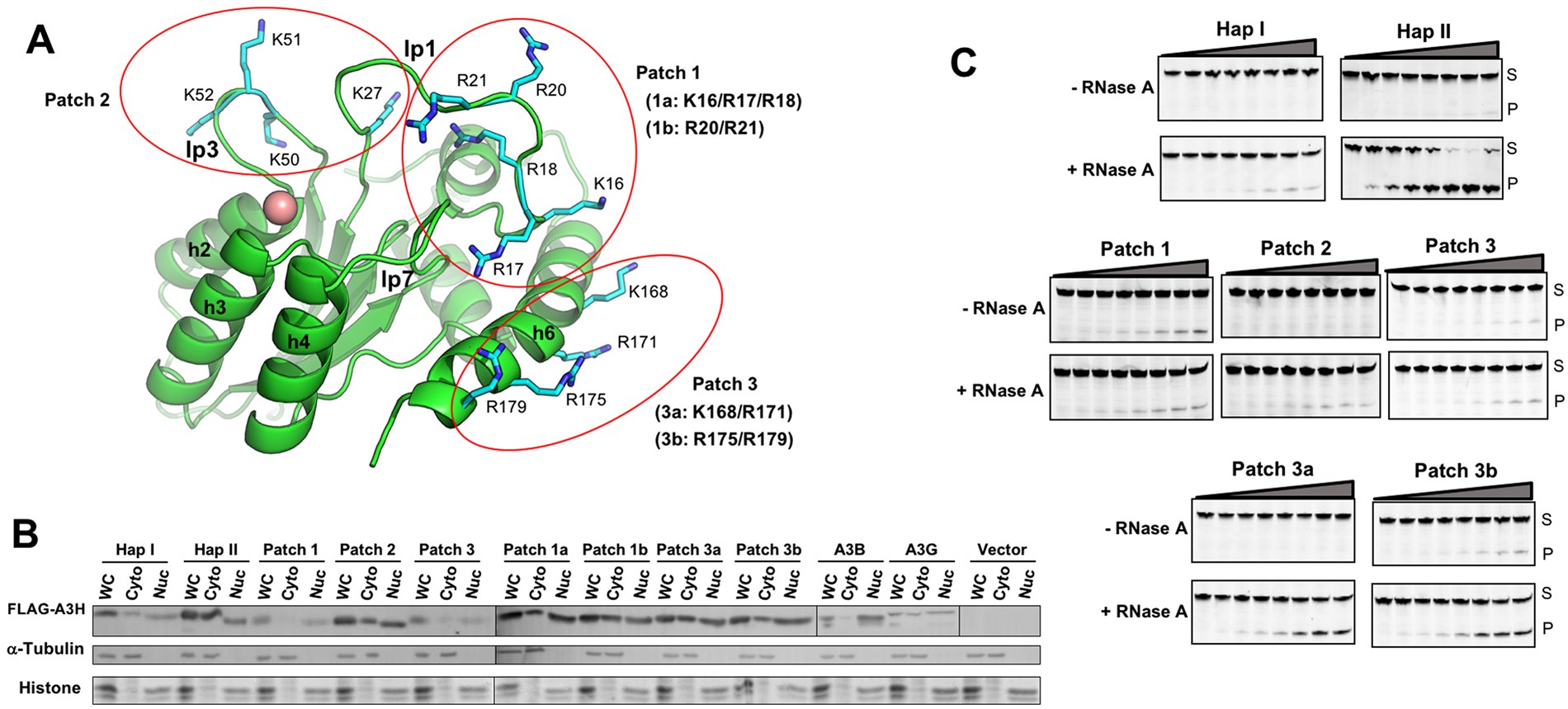

Positively charged patches are important for subcellular localization and deaminase activity of A3H. (A) A3H structure showing the positively charged residues mutated in three patch mutants (patch 1–3). (B) Cell fractionation analysis of A3H and various mutants, showing the distribution between nucleus and cytosol in HEK293T cells. Transfected 293T cells expressing wild-type A3H hap I, hap II, and various hap II mutants were fractionated into whole cell (WC), cytoplasmic (Cyto) and nuclear (Nuc) fractions. A3B (mostly nucleus) and A3G (both cytoplasm and nucleus) were also used as controls. FLAG-A3H proteins in each fraction were analyzed by Western blot. (C) The deaminase assay of selected A3H mutants using the cell lysates of transfected HEK293T cells with or without RNase A treatment. The deaminase reaction was performed with cell lysate range of 0–6 μg (total protein amount, 2-fold dilutions from 6 μg) and 300 nM ssDNA.
