From: The use of SWATH to analyse the dynamic changes of bacterial proteome of carbapanemase-producing Escherichia coli under antibiotic pressure

Figure 4

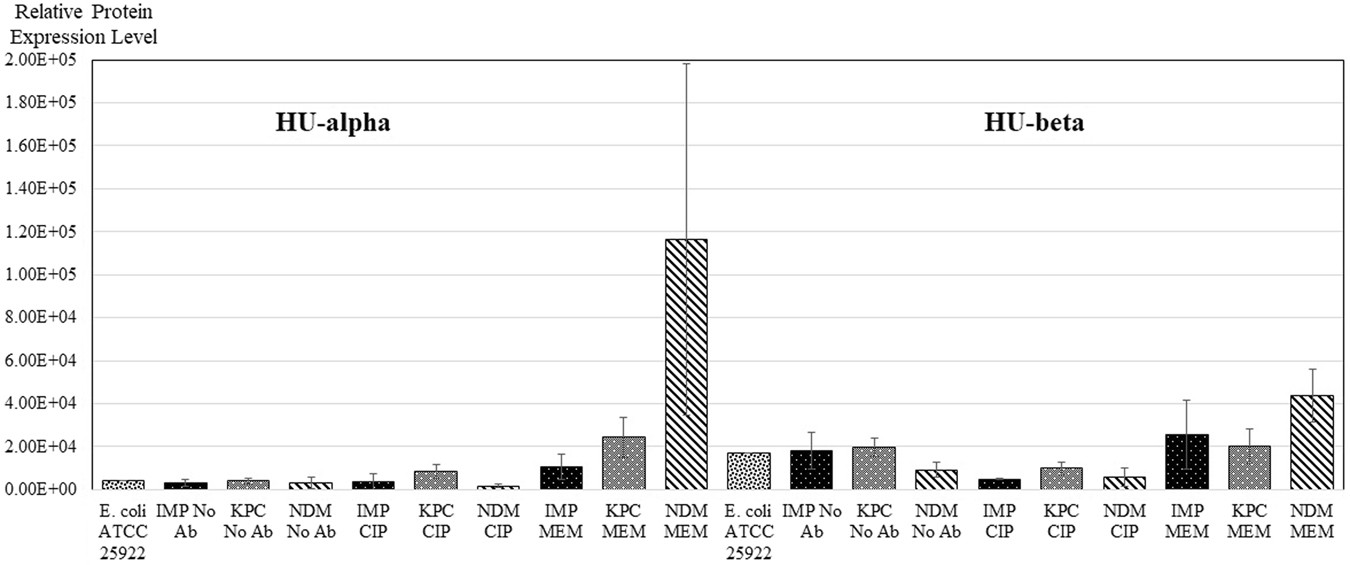

Relative comparison of expression of HU-alpha and beta DNA binding proteins between samples. Results are from experiments performed in duplicate - three strains of each carbapenemase-type (IMP, KPC or NDM) were analysed under each condition (growing with No Ab, MEM or CIP). E. coli ATCC 25922 was included as a control. Results are mean ± SD.
