Figure 3
From: ATLANTIS - Attractor Landscape Analysis Toolbox for Cell Fate Discovery and Reprogramming

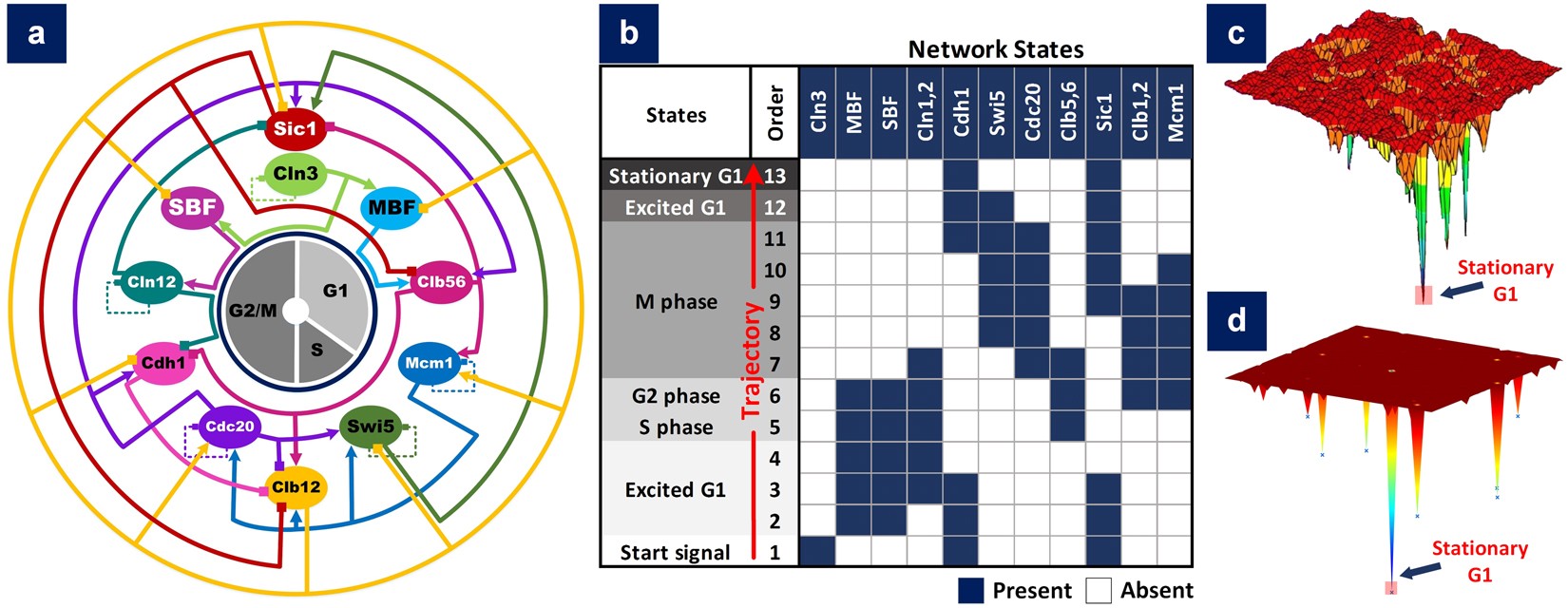

Decoding Yeast Cell Cycle Progression. (a) 11 node yeast cell cycle network adapted from Han et al., (b) yeast cell cycle trajectory order (1 → 13) during cell fate adoption from start signal to stationary G1 phase, (c) attractor landscape constructed by Han et al., (d) attractor landscape constructed using ATLANTIS toolbox.
