From: Microbead-based spoligotyping of Mycobacterium tuberculosis from Ziehl-Neelsen-stained microscopy preparations in Ethiopia

Figure 2

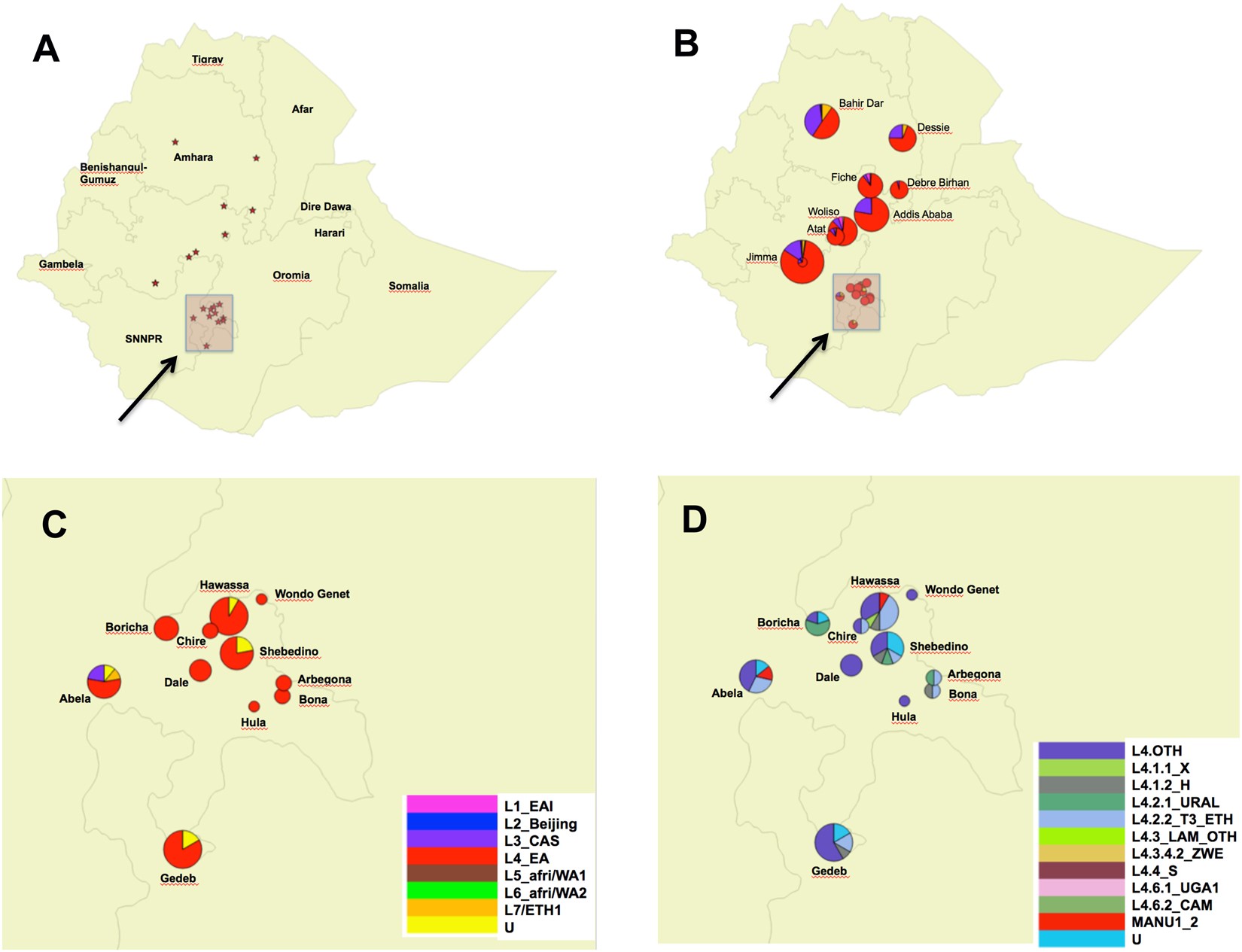

QGIS-built (v.2.18 Las Palmas, www.qgis.org) geographical genetical maps of Ethiopia. (A) map of Ethiopia with stars representing localities where data were produced (SNNPR) or collected from previously published papers11,20,21,22,23,24,25,26. (Supplementary file); (B) Mycobacterium tuberculosis complex lineage-based distribution map of Ethiopia. The rectangle show the precise investigation areas inside the Southern Nations, Nationalities and Peoples’ Region (SNNPR); (C) close-up of Map B; (D) close-up of Mycobacterium tuberculosis complex sublineages map distribution.
