Figure 2
From: Super anticorrosion of aluminized steel by a controlled Mg supply

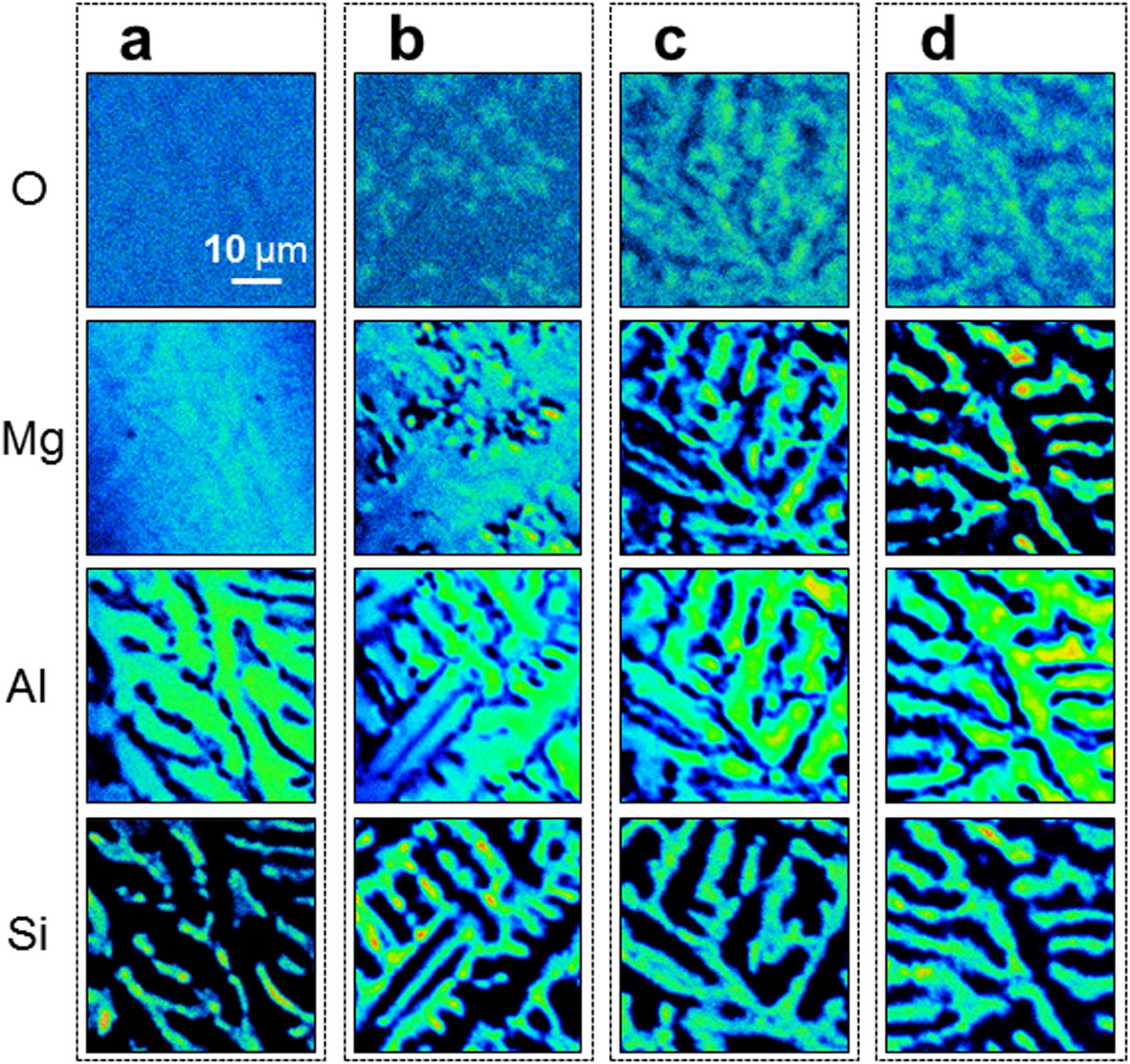

Top-view elemental maps by electron probe microanalysis for (a) as-grown, (b) Type A, (c) Type B, and (d) Type C samples with a 0.5 μm-thick Mg layer.
