Figure 2
From: Experimental demonstration of conformal phased array antenna via transformation optics

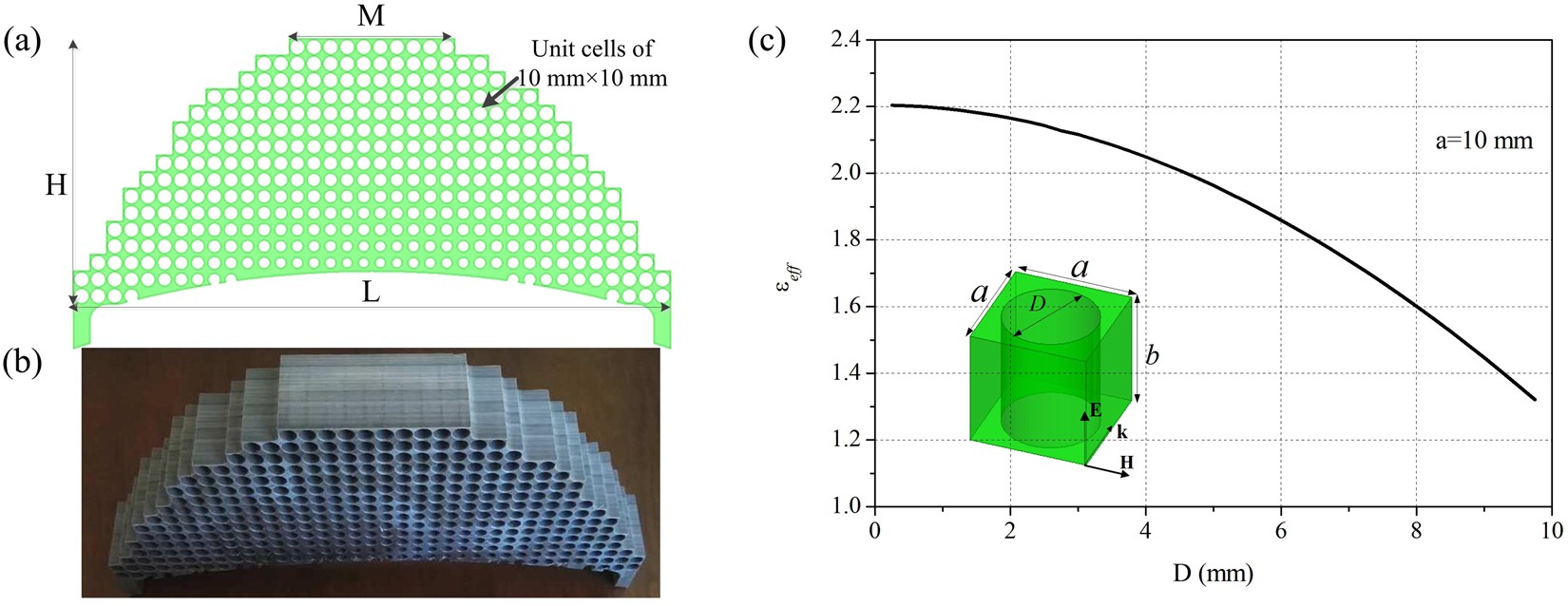

(a) Design of the discrete lens, (b) Picture of the fabricated lens, (c) A parametric analysis is performed to extract the effective permittivity according to the diameter D of the drilled-hole with respect to a unit cell with period a = 10 mm.
