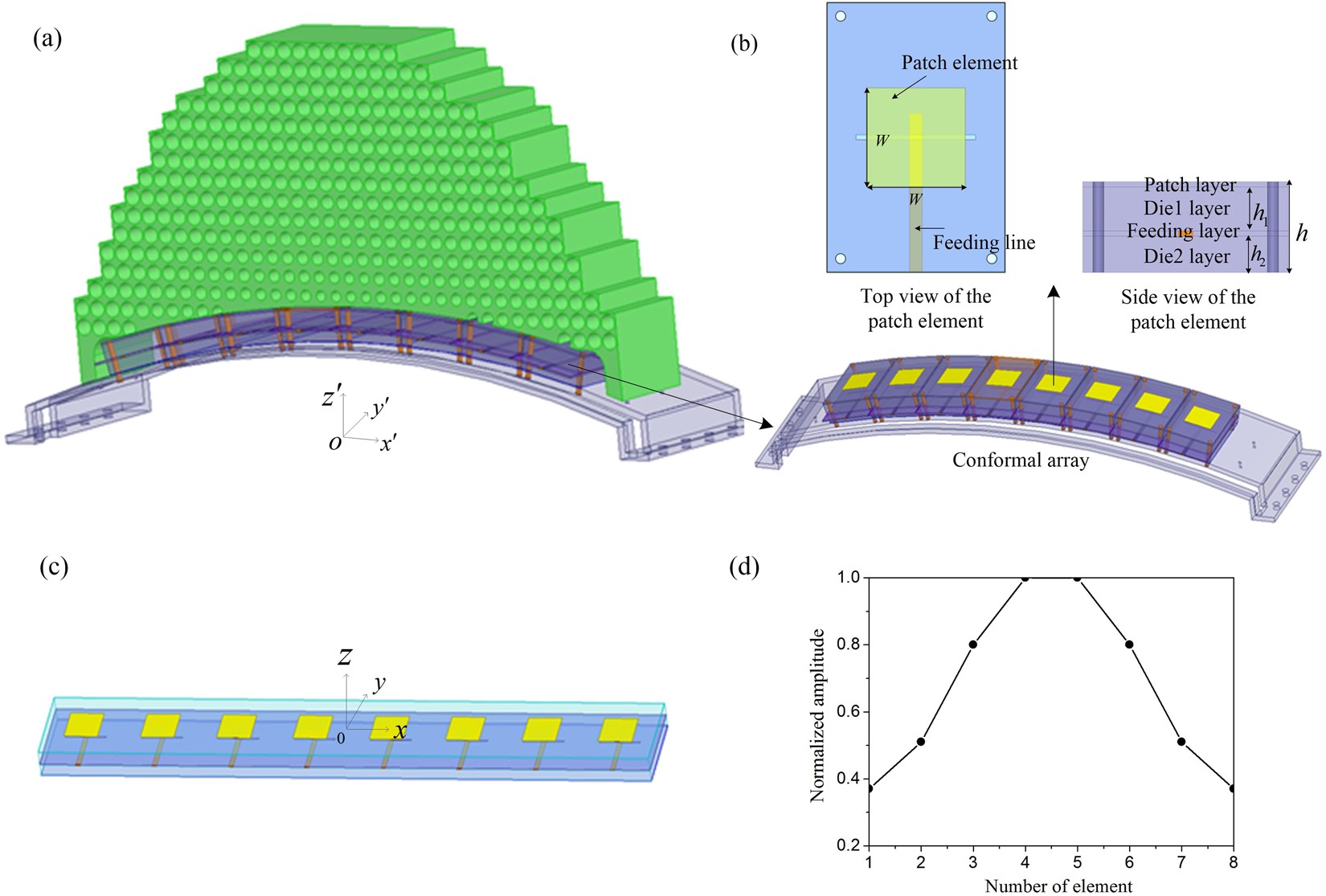

Figure 3
From: Experimental demonstration of conformal phased array antenna via transformation optics
(a) The physical conformal patch array with QCTO lens, (b) The 8-element conformal patch array and aperture-coupled patch element structure, (c) The virtual planar patch array, (d) The normalized magnitude distribution synthesized from −25 dB Taylor synthesis.
