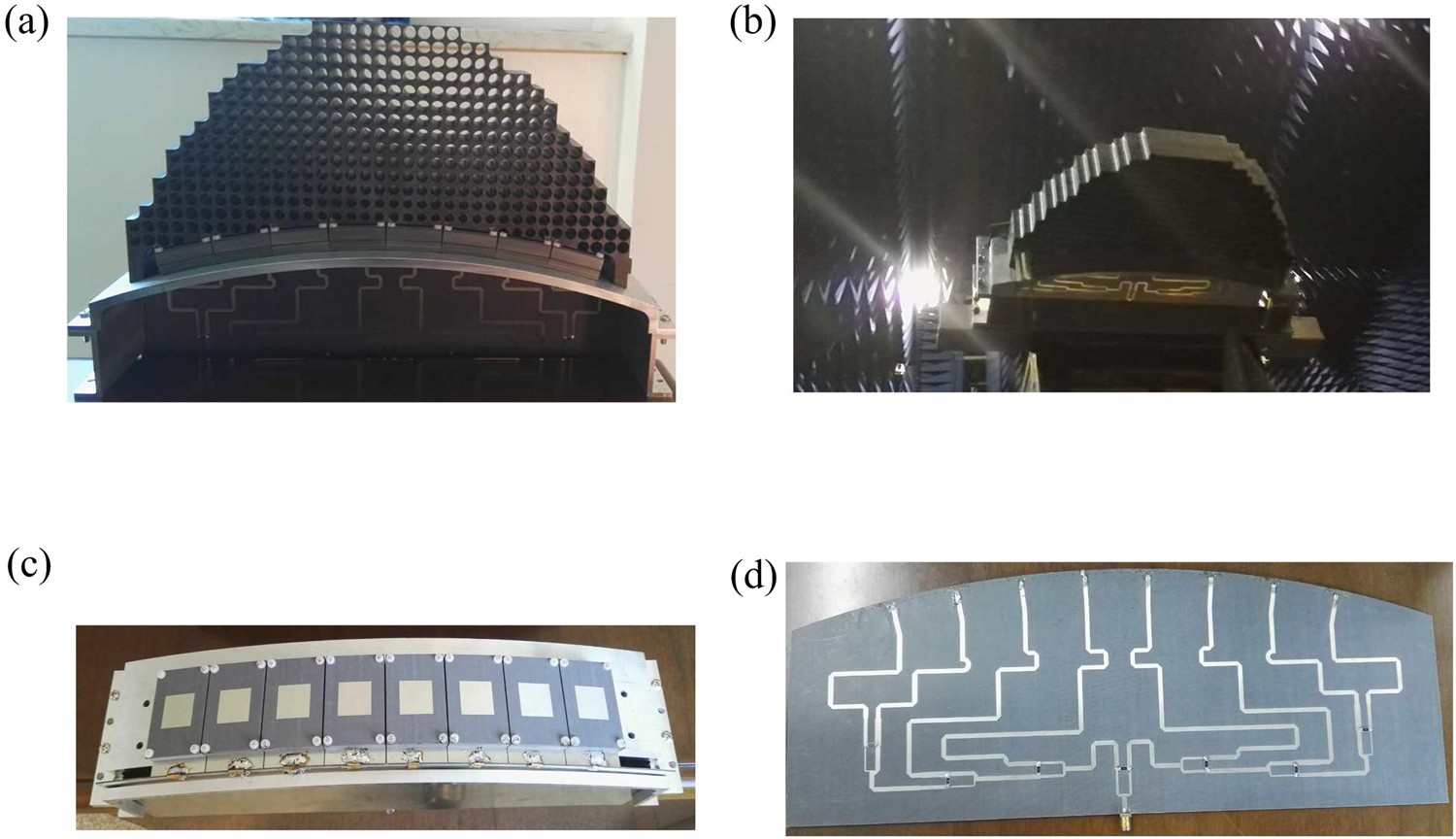

Figure 7
From: Experimental demonstration of conformal phased array antenna via transformation optics
(a) The fabricated conformal patch array antenna with lens, (b) Antenna in anechoic chamber, (c) Conformal patch array antenna, (d) The printed feeding network being welded with the radiation elements.
