Figure 9

From: Near-infrared laser thermal conjunctivoplasty

Figure 9

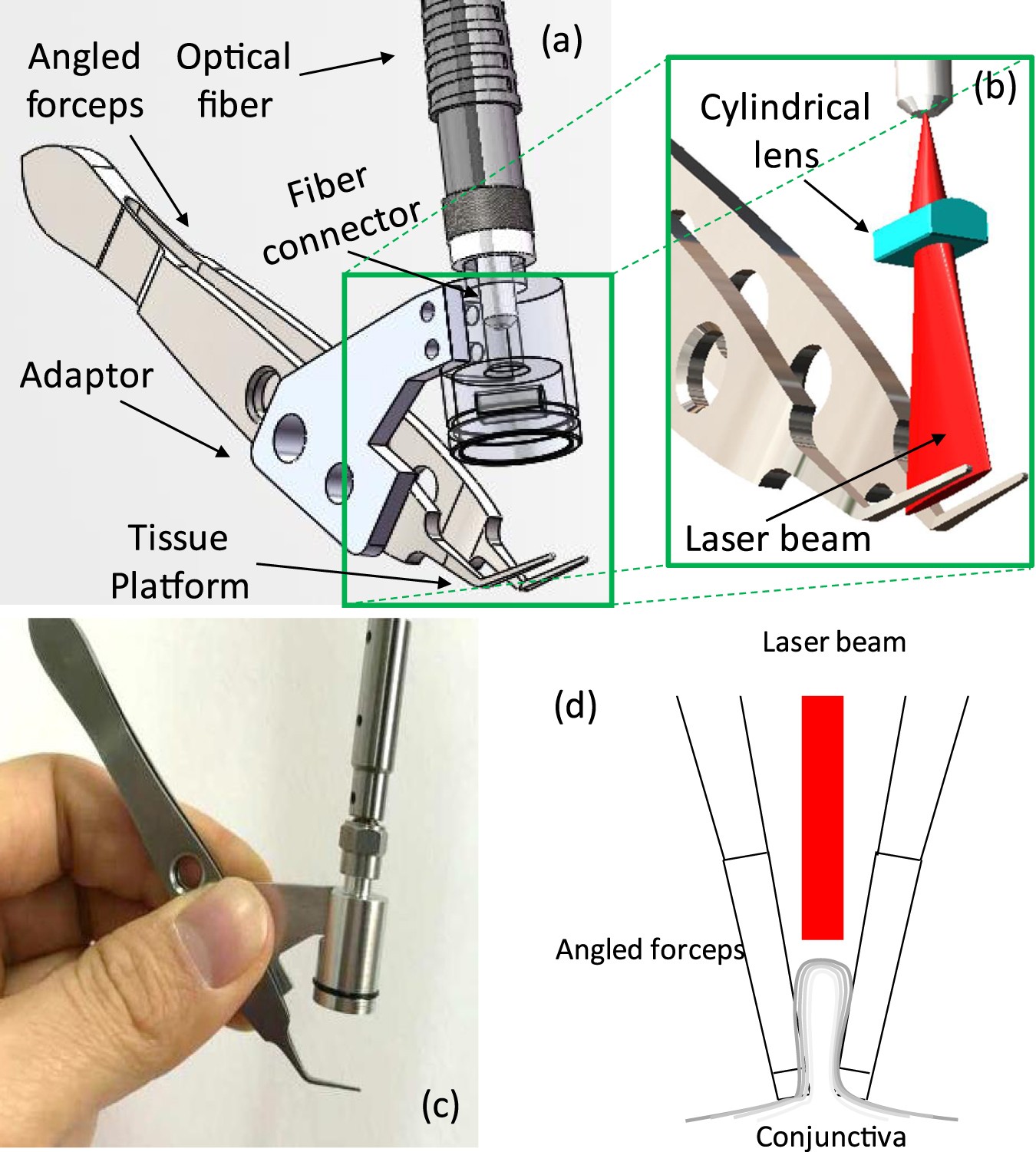

(a) 3D model of the handheld probe with the angled forceps. (b) 3D demonstration of the line-focused laser beam and the angled forceps. (c) Photograph of the handheld LTC probe. (d) Illustration of the configuration for laser delivery to redundant conjunctival tissue.
