From: Effects of Phytase Transgenic Maize on the Physiological and Biochemical Responses and the Gut Microflora Functional Diversity of Ostrinia furnacalis

Figure 3The alternative text for this image may have been generated using AI.

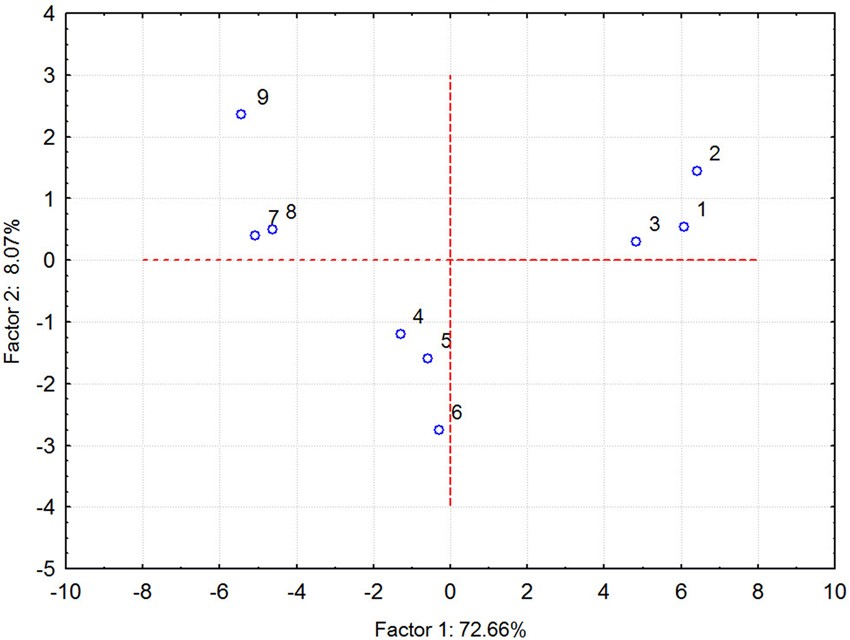

The principal component analysis of the carbon substrates used by the gut microflora of three generations of Asian corn borer (ACB). 1, 2 and 3 represent the 1st generation of ACBs fed phytase transgenic maize, the parental strain Liyu 35 and the non-GM maize Zhendan 958, respectively; 4, 5, 6 represent the 2nd generation of ACBs fed phytase transgenic maize, Liyu 35 and Zhendan 958, respectively; 7, 8, 9 represent the 3rd generation of ACBs fed phytase transgenic maize, Liyu 35 and Zhengdan 958, respectively.
