Figure 5
From: Probing the localization of magnetic dichroism by atomic-size astigmatic and vortex electron beams

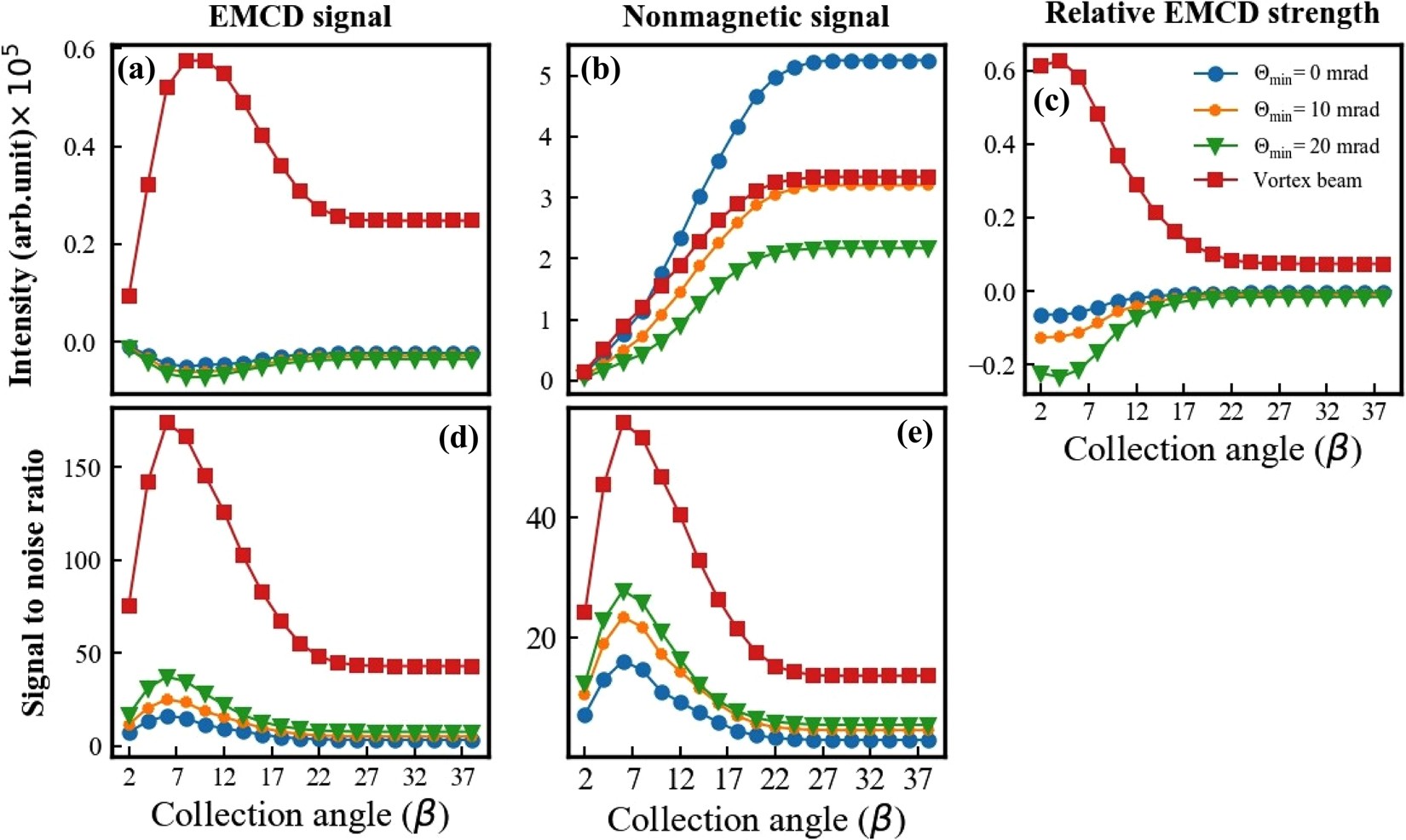

Radial profiles of (a) EMCD, (b) non-magnetic, (c) relative EMCD, (d) SNR normalized per unit of beam current hitting the sample, and (e) SNR normalized per unit of beam current prior to probe forming aperture (annular or fork), shown for various probes at 28.88 nm sample thickness.
