Figure 6

From: The Use of Metabolomics and Inflammatory Mediator Profiling Provides a Novel Approach to Identifying Pediatric Appendicitis in the Emergency Department

Figure 6

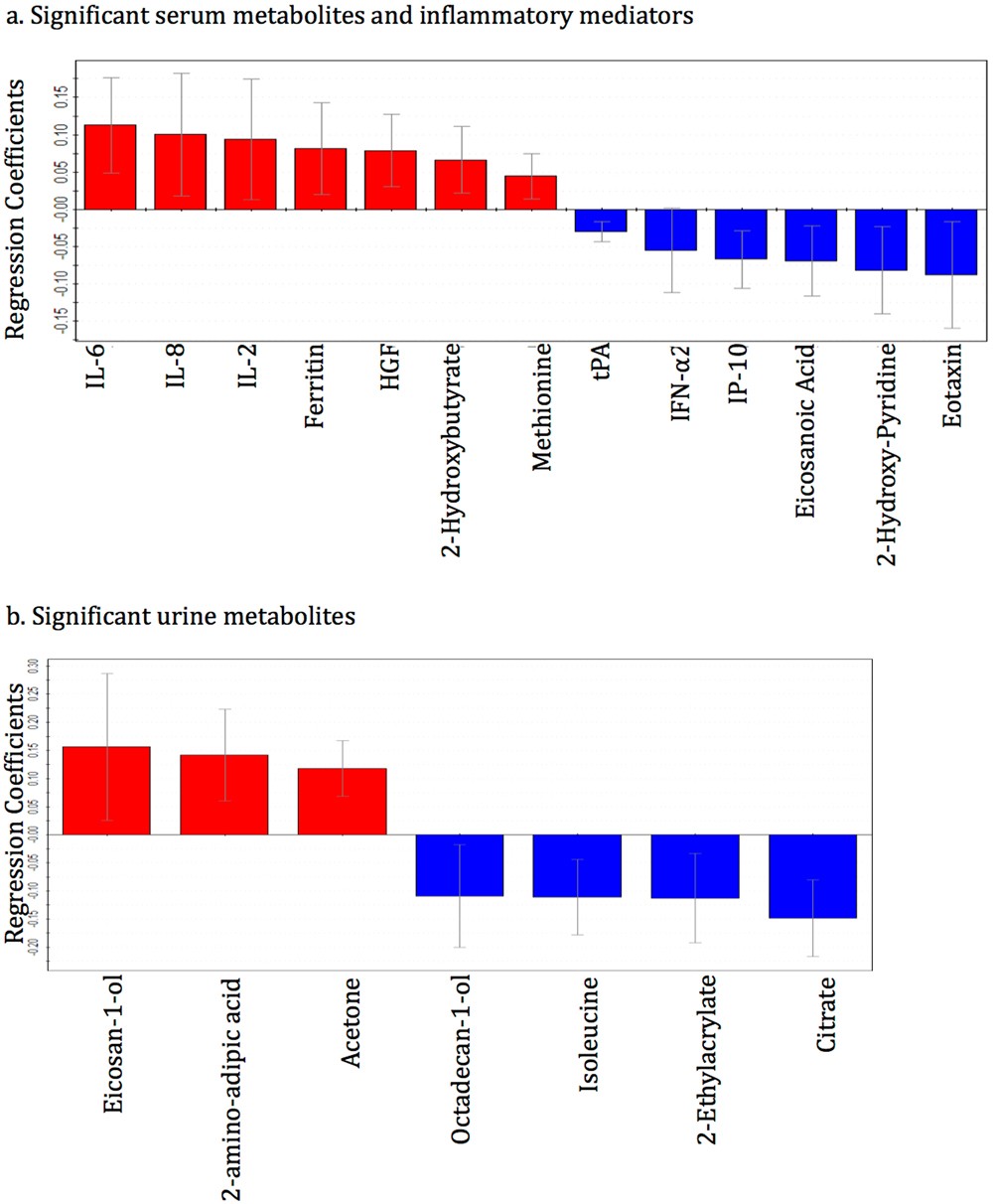

The regression coefficient plots for the statistically significant (p < 0.05) (a) serum metabolites and inflammatory mediators and (b) urine metabolites distinguishing children with perforated appendicitis and non-perforated appendicitis. Red bars with positive coefficient values represent increased concentrations in the perforated appendicitis children, and blue bars with negative values represent reduced concentration in the perforated appendicitis patients, compared with non-perforated appendicitis children. Abbreviations: IL-Interleukin, HGF-Hepatocyte growth factor, tPA-Tissue plasminogen activator, IFN-α2-Interferon alpha-2, and IP-10-Interferon gamma-induced protein 10.
