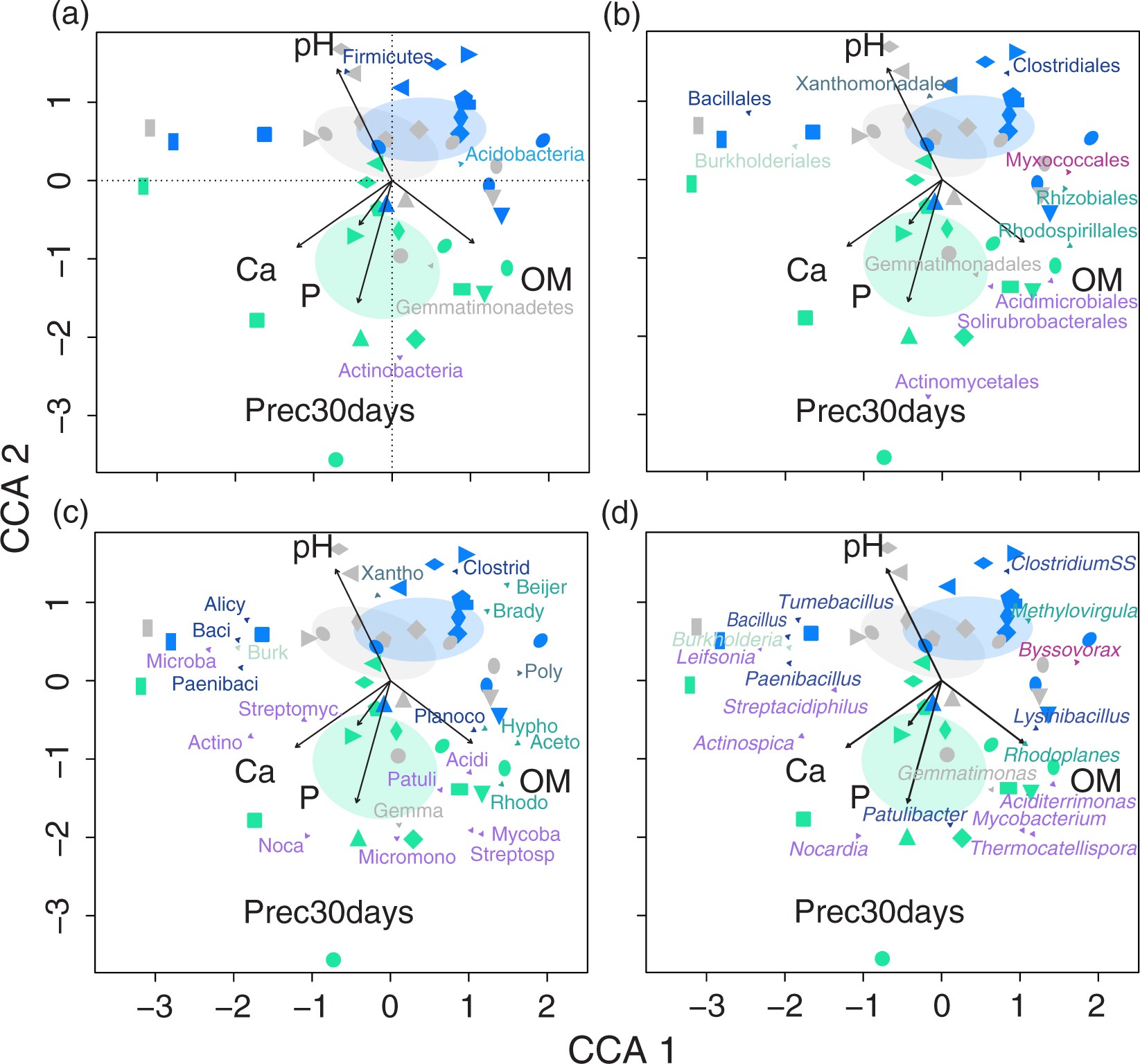

Figure 3

Canonical correspondence analysis (CCA) ordination plots based on relative abundances of rarefied taxonomic data of soil bacterial communities in response to seasonal dynamics in a LTERF forest. Total inertia, 3.53; Constrained 0.58; Eigenvalues CCA 1, 0.18; CCA 2, 0.13. Identical symbols in different colours refer to the individuals plots at the three sampling time. Time 1, green (rainy season); Time 2, blue (transition into dry season); Time 3, grey (dry season). Significant environmental variables were included in the ordination following a sequential ANOVA significance assessment of each single term. Ellipses denote 95% confidence intervals using standard error of the weighted average plot scores at each sampling time. Vectors representing bacterial taxa at phylum and lower taxonomic levels were fit into the ordination by using the ‘vegan’ envfit function and their significance assessed under 999 permutations. Because of the high number of taxa, vectors are distributed over four identical ordination plots (a), phylum; (b), order; (c), family, (d), genus; identical colour to identify taxa within a phylum). Prec30days, precipitation in the 30 days preceding sampling; OM, soil organic matter; P, phosphate; Ca, calcium; Acidi, Acidimicrobineae Incertae Sedis; Actino, Actinospicaceae; Microba, Microbacteriaceae; Micromo, Micromonosporaceae; Mycoba, Mycobacteriaceae; Noca, Nocardiaceae; Streptomy, Streptomycetaceae; Streptosp, Streptosporangiaceae; Patuli, Patulibacteraceae; Alicy, Alicyclobacillaceae; Baci, Bacillaceae 1; Paenibaci, Paenibacillaceae 1; Planoco, Planococcaceae; Clostrid, Clostridiaceae 1; Gemma, Gemmatimonadaceae; Beijer, Beijerinckiaceae; Brady, Bradyrhizobiaceae; Hypho, Hyphomicrobiaceae; Aceto, Acetobacteraceae; Rhodo, Rhodospirillaceae; Burk, Burkholderiaceae; Poly, Polyangiaceae; Xantho, Xanthomonadaceae.
