Figure 4
From: Negative soil moisture-precipitation feedback in dry and wet regions

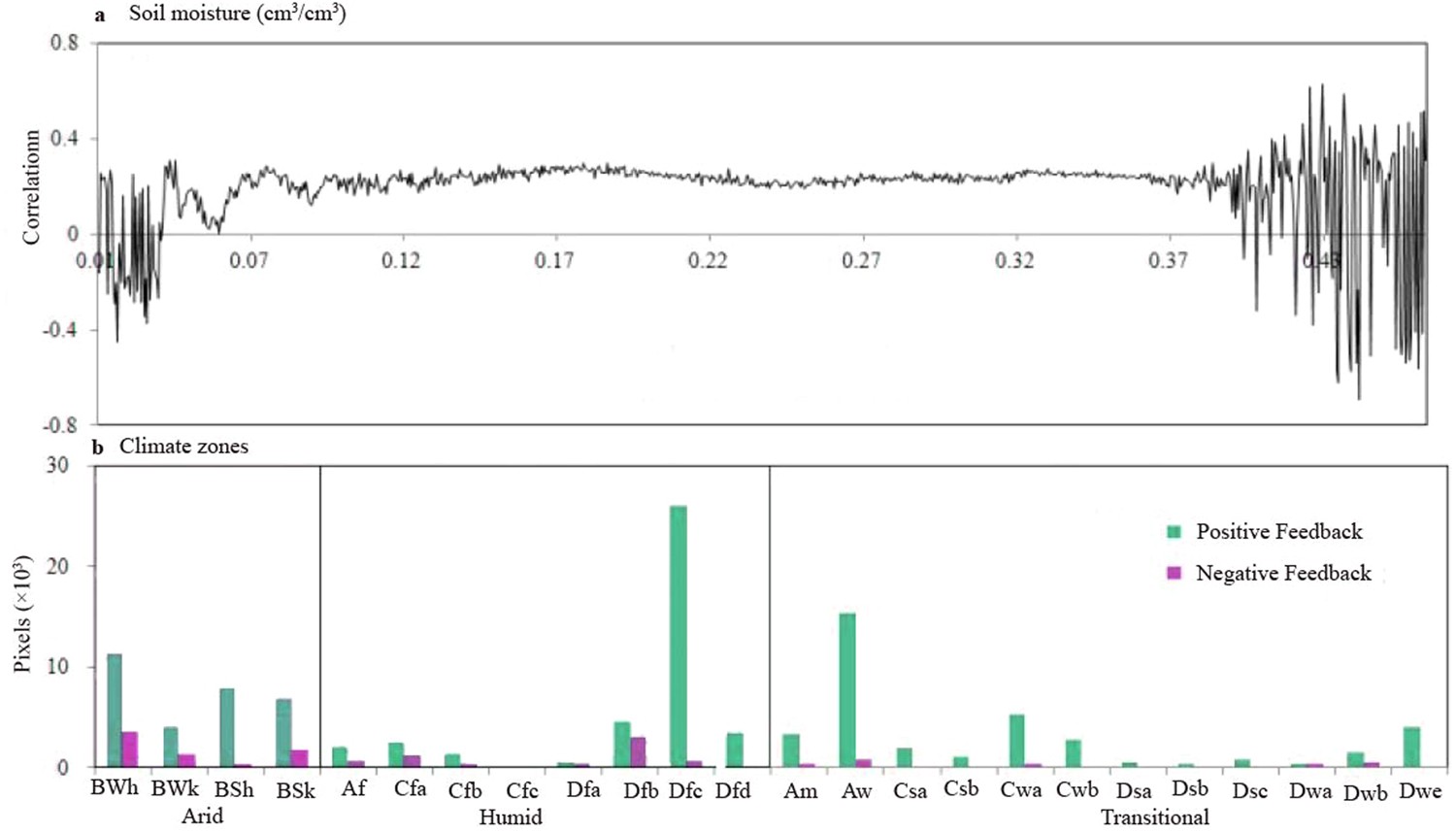

The spatial pattern of SM-P feedback over different soils: (a) The average correlation with a soil moisture interval of 0.0005 cm3/cm3; (b) Negative feedback in different climate zones. The first letter (A to D) refers to the broad climate type: tropical, arid, temperate or cold. The second letter (f, m, w/W and s/S) represents the subsequent precipitation conditions. The third letter (a–d,h and k) refers to the temperature classification. The definitions of the climate zones can be found in Peel et al.46. Each pixel represents an area of 0.25 × 0.25 degrees.
