Figure 3
From: Unexpectedly high piezoelectricity of Sm-doped lead zirconate titanate in the Curie point region

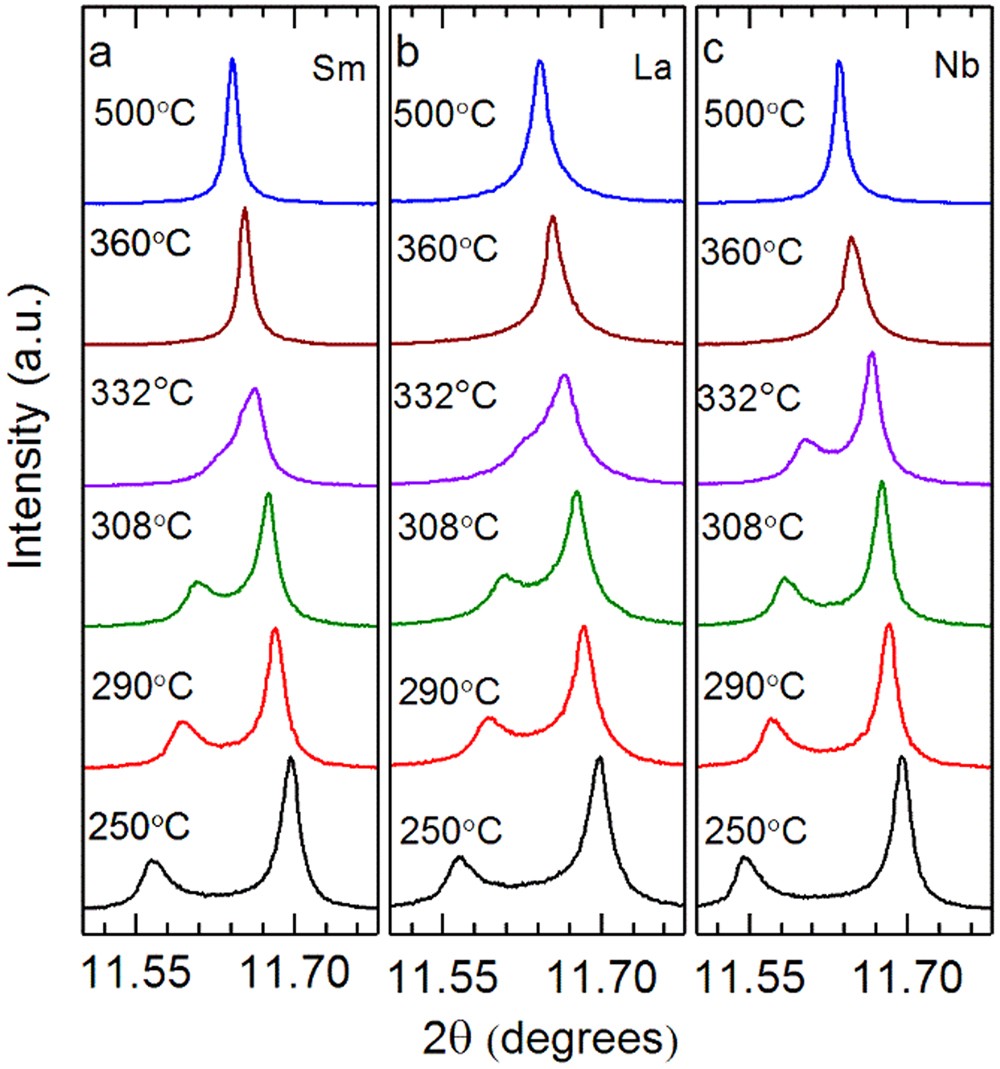

Selected regions of high resolution synchrotron XRD patterns showing the {002} diffraction profile for (a) Sm-, (b) La- and (c) Nb-doped PZT 50:50.
