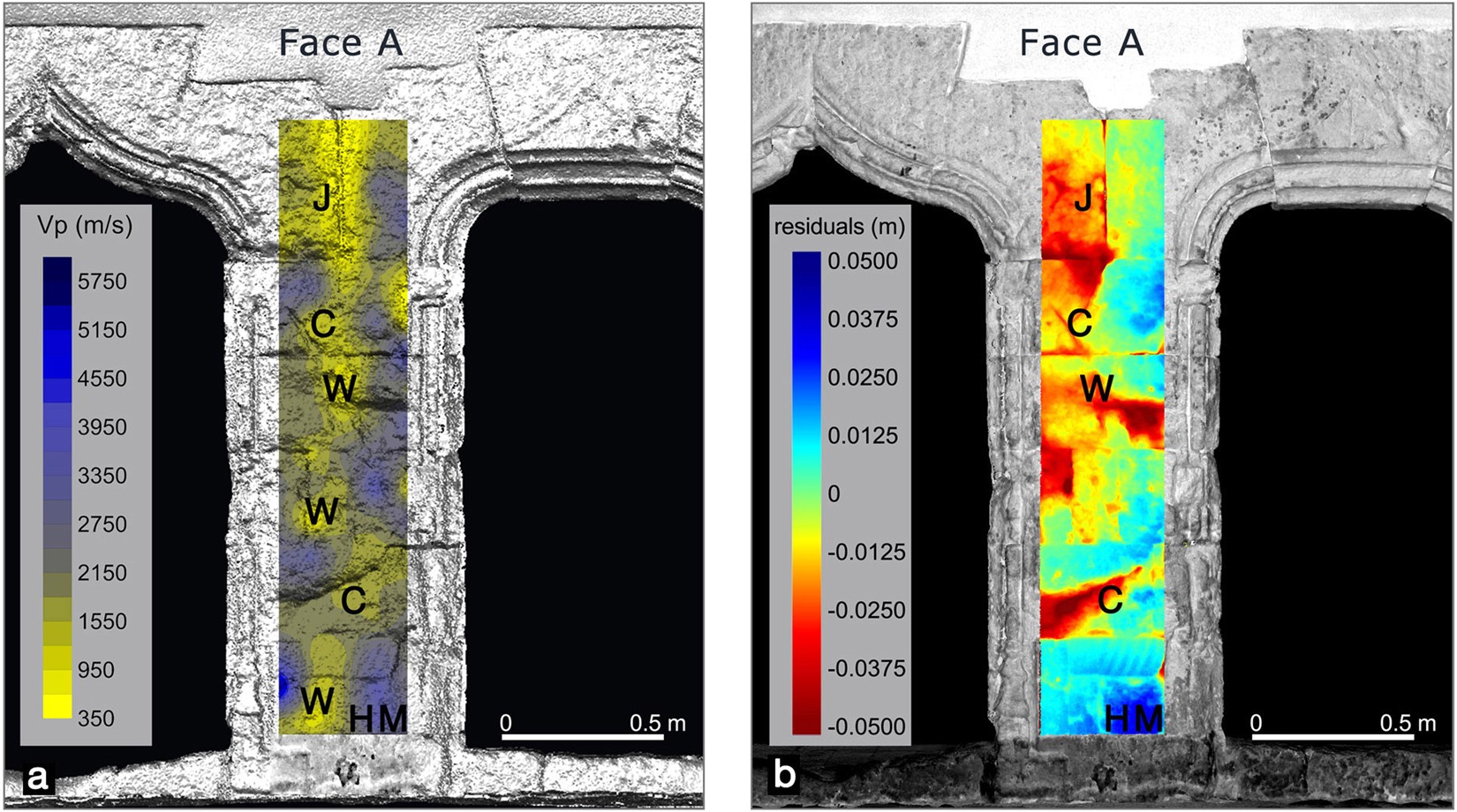

Figure 5

Comparison between the ultrasonic map and the TLS results on face A of the pillar. The two techniques of the NDT survey show matching results highlihted by uppercase letters (C = crack; J = Junction; W = Weathering; HM = Health Material).
