Figure 5

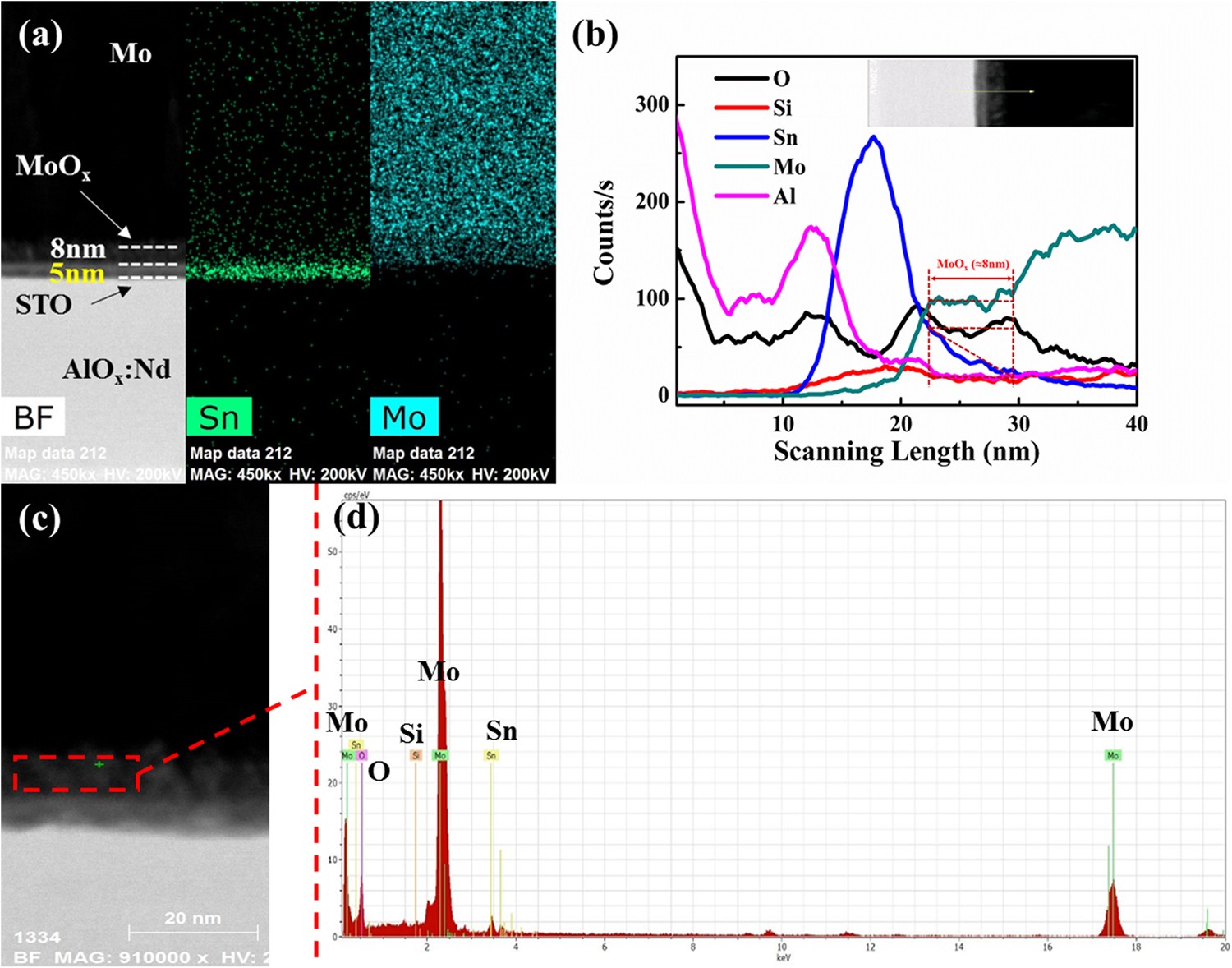

(a) Cross-sectional HR-TEM image of a-STO TFT annealed at 300 °C and the element distribution maps of Mo and Sn. (b) EDS line scan profiles of cross-sectional a-STO TFT. (c) HR-TEM image of the a-STO TFT. (d) EDS point scan profiles from (c).
