Figure 4

From: Comparative roles of clpA and clpB in the survival of S. Typhimurium under stress and virulence in poultry

Figure 4

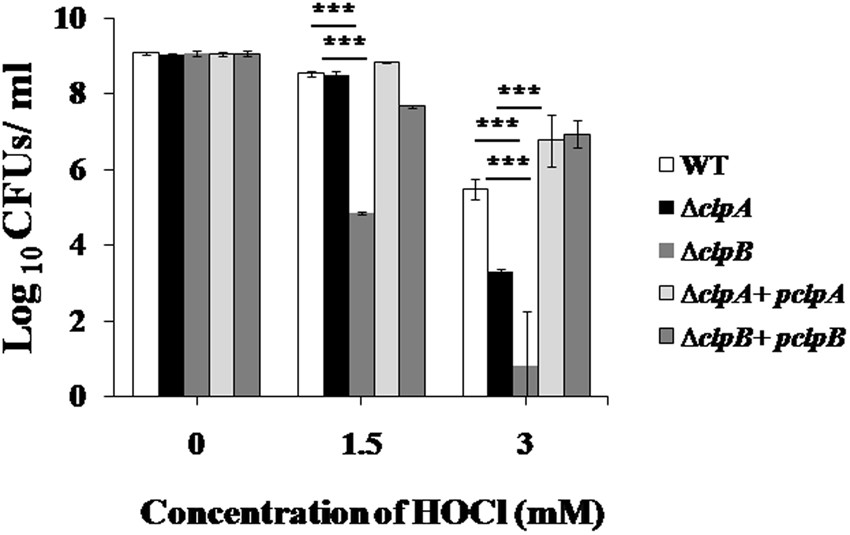

Sensitivities of ∆clpA and ∆clpB strains of S. Typhimurium to HOCl. Mid-log phase grown cultures of WT, ∆clpA, ∆clpB mutants and complemented (∆clpA + pclpA and ∆clpB + pclpB) strains of S. Typhimurium were exposed to 0, 1.5 and 3 mM HOCl for 2 h. Cultures were then serially diluted and plated on HE agar plates. CFUs/ml were enumerated after overnight incubation of plates. Data are presented as mean ± S.D. of three replicates (***denotes p < 0.001).
