From: Adipokinetic hormone signaling determines dietary fatty acid preference through maintenance of hemolymph fatty acid composition in the cricket Gryllus bimaculatus

Figure 4

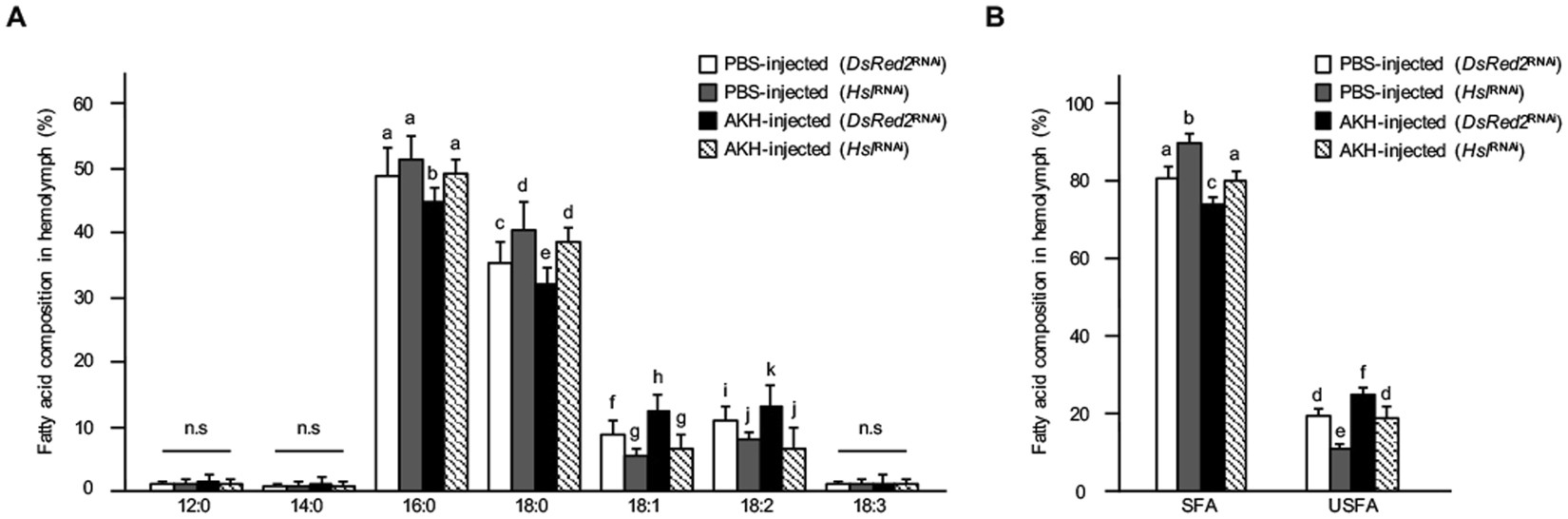

Effects of RNAi-mediated Hsl knockdown on fatty acid composition. The fatty acid composition in the hemolymph of HslRNAi crickets with or without AKH injection (A), and the proportions of SFAs and USFAs to total fatty acids (B). Values are expressed as means ± SD (A and B; n = 7). The statistical analyses were performed within the same structure (A) or within same structural group (B). Different letters indicate significant differences over Tukey’s post hoc test (P < 0.05), n.s. indicates not significant.
