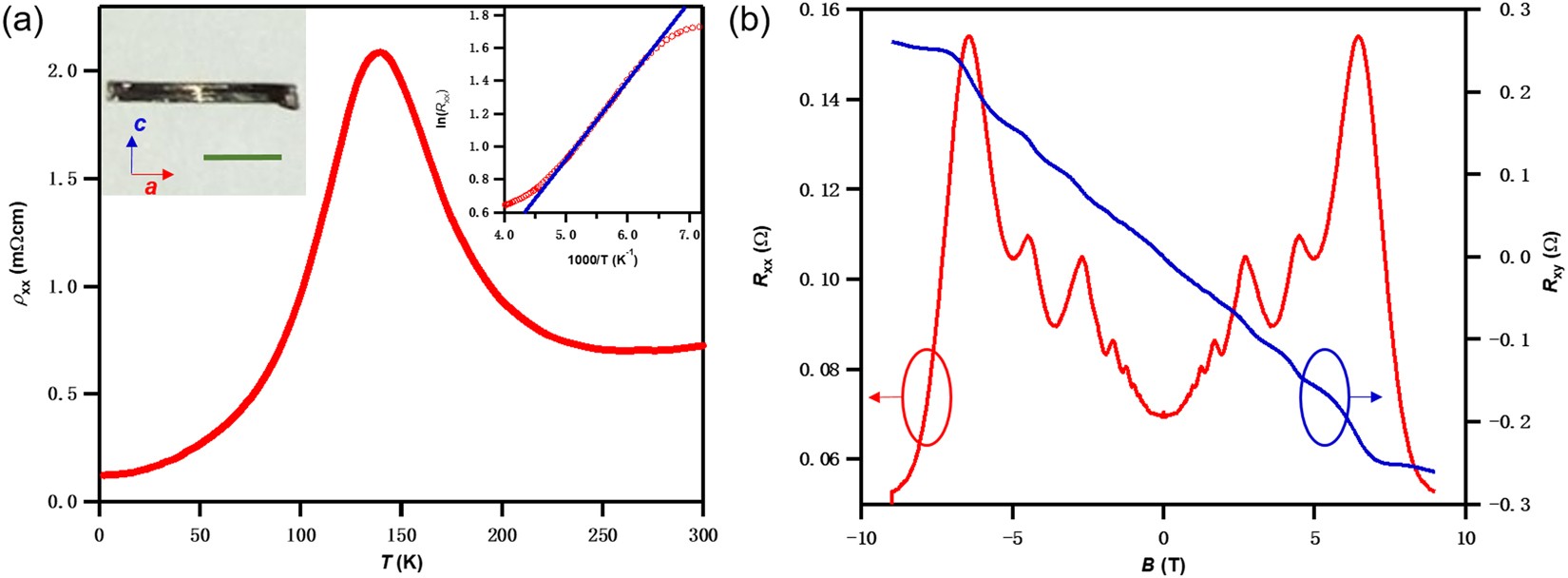

Figure 2
From: Evidence for Layered Quantized Transport in Dirac Semimetal ZrTe5
The R-T relationship and the magnetoresistance Rxx and Hall resistance Rxy at 2 K. (a) The temperature dependent resistivity of the ZrTe5 sample. The current is parallel to the crystalline needle axis (I//a). Left Inset: The optic image of an as-grown bulk crystal, the scale bar is 1 mm. Right Inset: The Arrhenius plot, which yields an activation energy of 41 meV in the temperature range of 160–200 K. (b) The magnetoresistance Rxx and Hall resistance Rxy at 2 K. Quantum oscillations can be observed in R xx , as well as plateaus in R xy .
