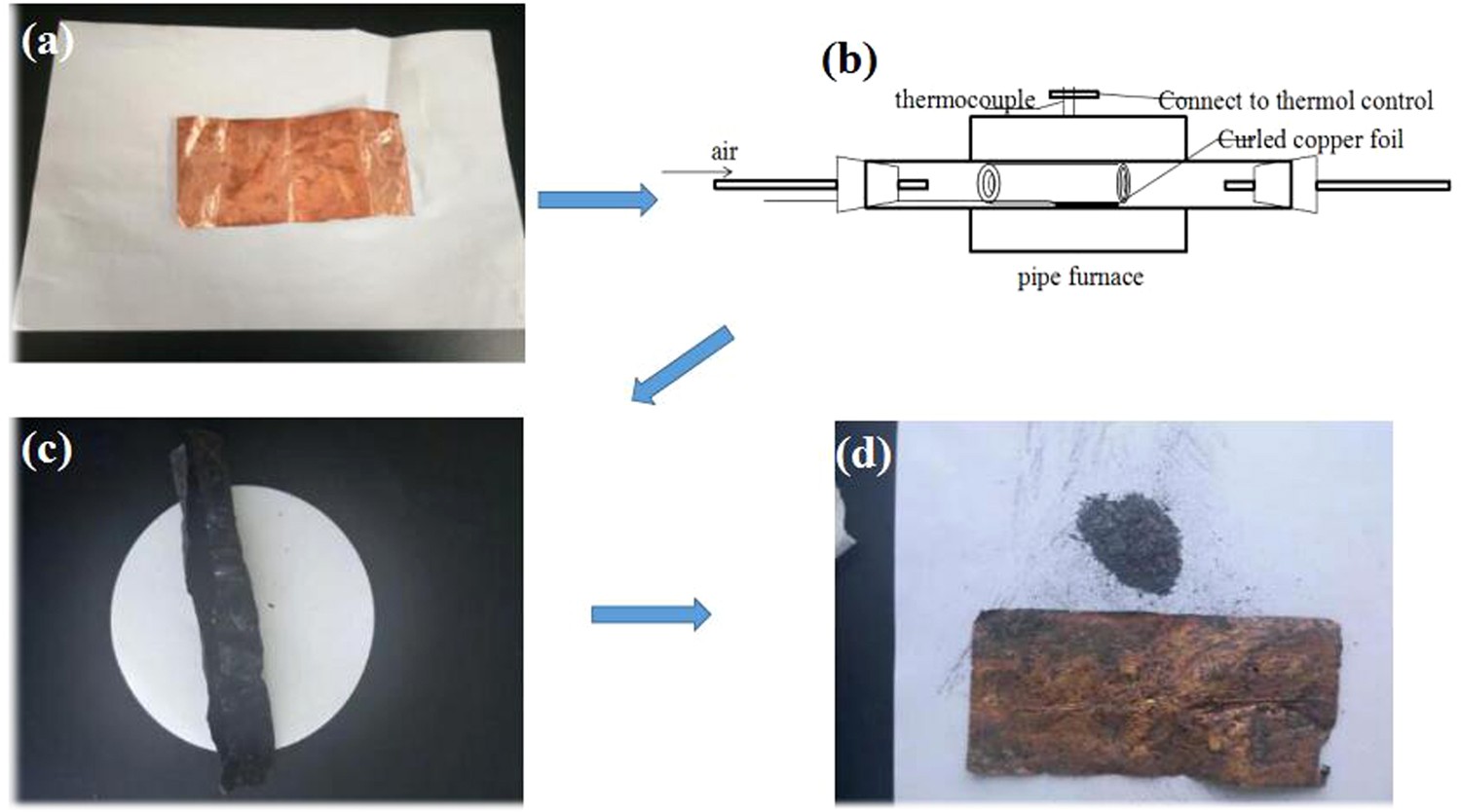

Figure 10

Preparation process of CuO nanowires through thermal oxidation method, (a) The pure copper foil, (b) Copper foil calcination process, (c) The calcined copper foil, (d) The black copper oxide nanowires peeled off from the surface of copper foil.
