Figure 9

From: Intriguingly high thermal conductivity increment for CuO nanowires contained nanofluids with low viscosity

Figure 9The alternative text for this image may have been generated using AI.

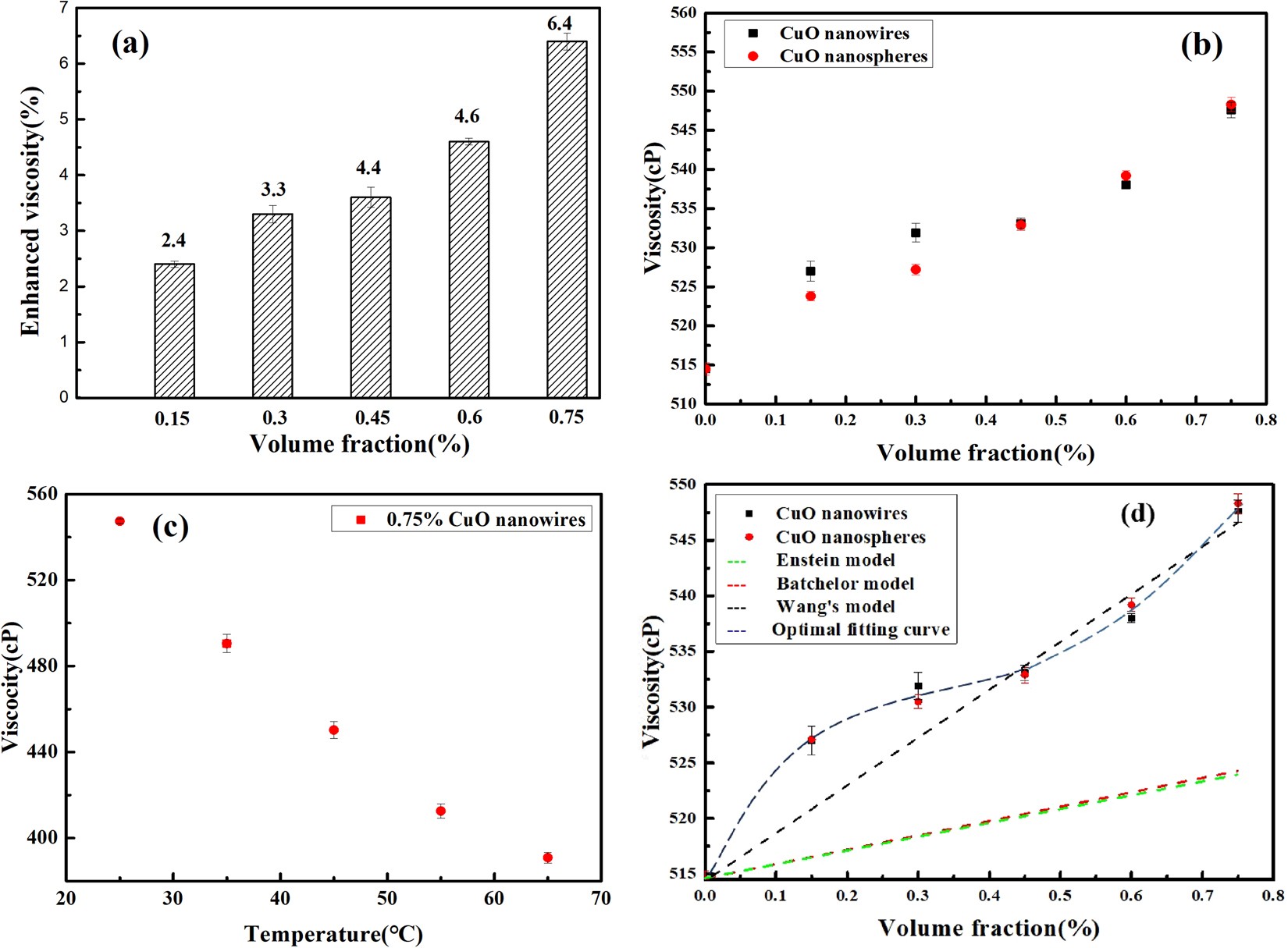

(a) The average viscosity ratio and enhanced for various volume concentrations of CuO nanofluids. (b) Viscosity of nanofLluids with different CuO particles as a functionof volume fraction, (c) Viscosity of nanofluids containing 0.75% CuO nanowires at various temperature, (d) Compared with the predictions from different classical and empirical viscosity models.
