Figure 2
From: Slow Electron Making More Efficient Radiation Emission

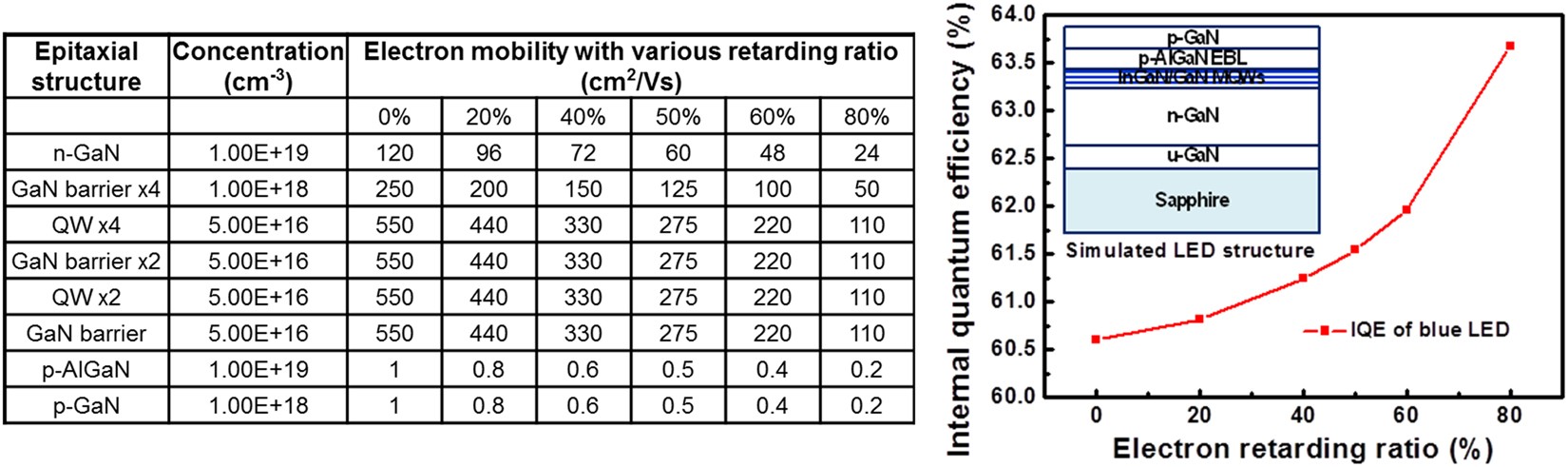

Details of the simulated epitaxial structure for the blue LED (including concentrations and mobilities of various epitaxial layers) and the simulated IQE performance with various electron retarding ratios.
