Figure 3
From: Dense Ge nanocrystals embedded in TiO2 with exponentially increased photoconduction by field effect

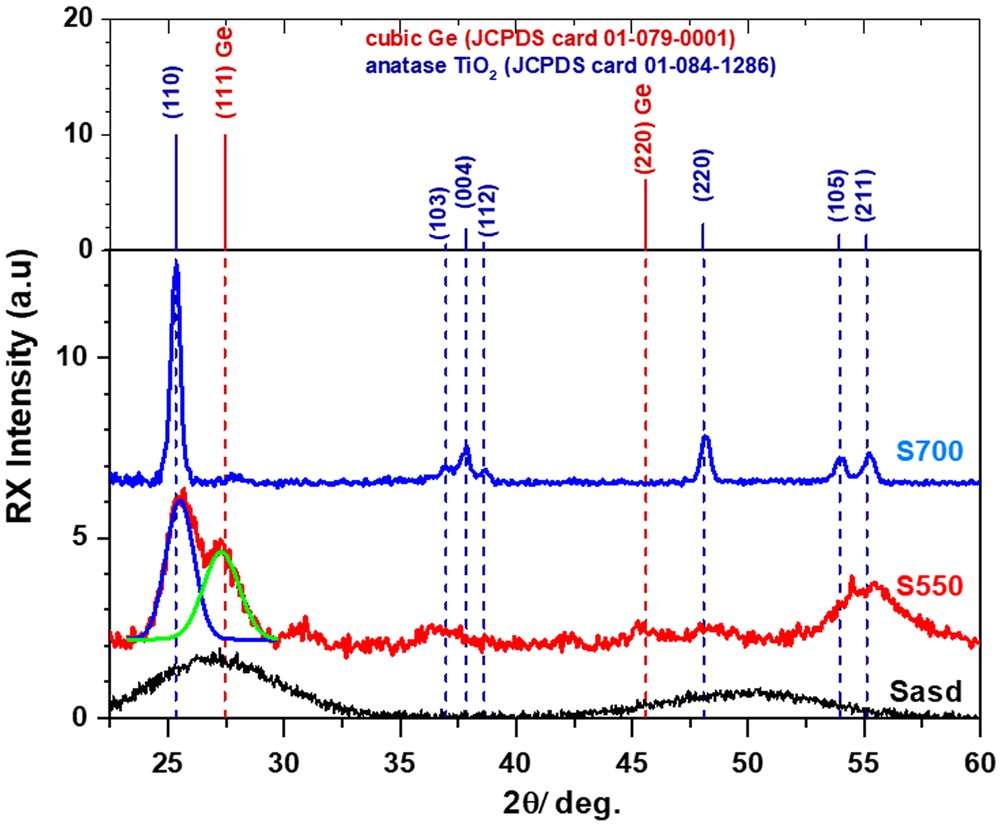

X-ray diffractograms of samples Sasd, S550 and S700 on 400 nm SiO2/c-Si substrate (smooth background was extracted). For S550: (111) Ge and (110) TiO2 peaks obtained from deconvolution are evidenced by green and blue curves. The topmost panel shows tabulated positions for cubic Ge and anatase TiO2.
