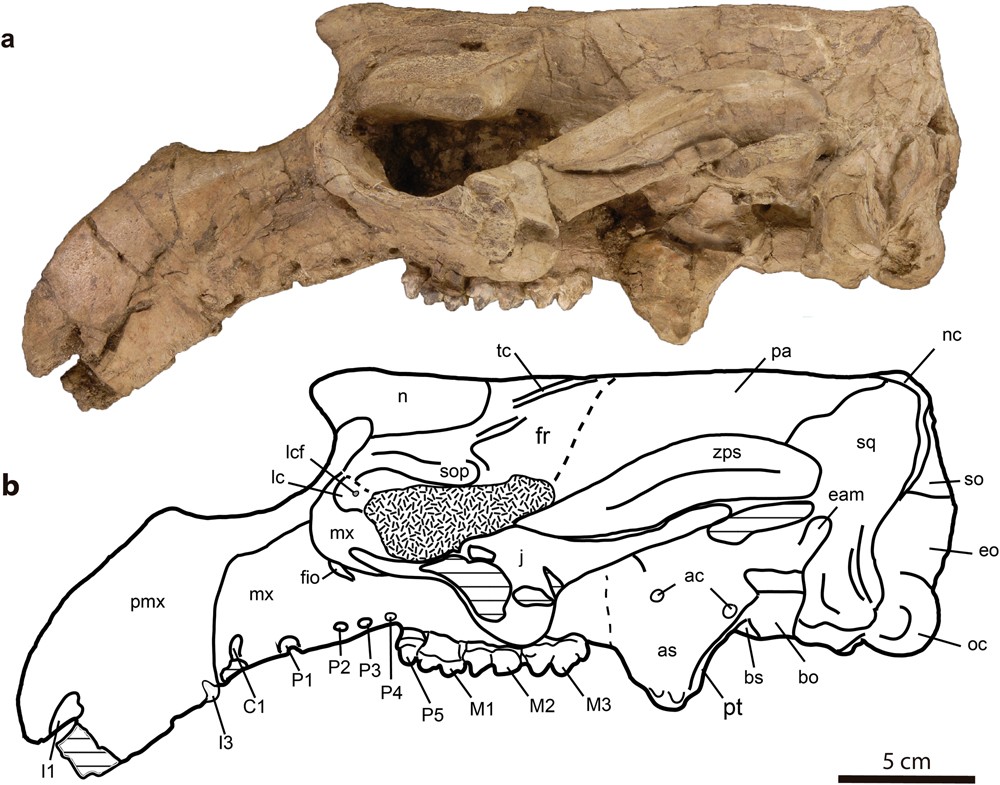

Figure 2
Skull of Sobrarbesiren cardieli gen. et sp. nov. (holotype, MPZ 2017/1), in lateral view. (a) Photograph, (b) interpretative sketch. Sutures are marked with plain lines; dashed lines represent reconstructed sutures; shaded areas represent broken or badly preserved bones; and dotted areas represent matrix. Anatomical abbreviations: ac, alisphenoid canal; as, alisphenoid; bo, basioccipital; bs, basisphenoid; eam, external auditory meatus; eo, exoccipital; fio, infraorbital foramen; fm, foramen magnum; fr, frontal; j, jugal; lc, lacrimal; lcf, lacrimal foramen; mf, mesorostral fossa; mx, maxilla; n, nasal; nc, nuchal crest; oc, occipital condyle; pa, parietal; pal, palatine; paop, paraoccipital process; pmx, premaxilla; pt, pterygoid; ptp, post-tympanic process; so, supraoccipital; sop, supraorbital process of frontal; sq, squamosal; tc, temporal crest; zps, zygomatic process of squamosal.
