Figure 6

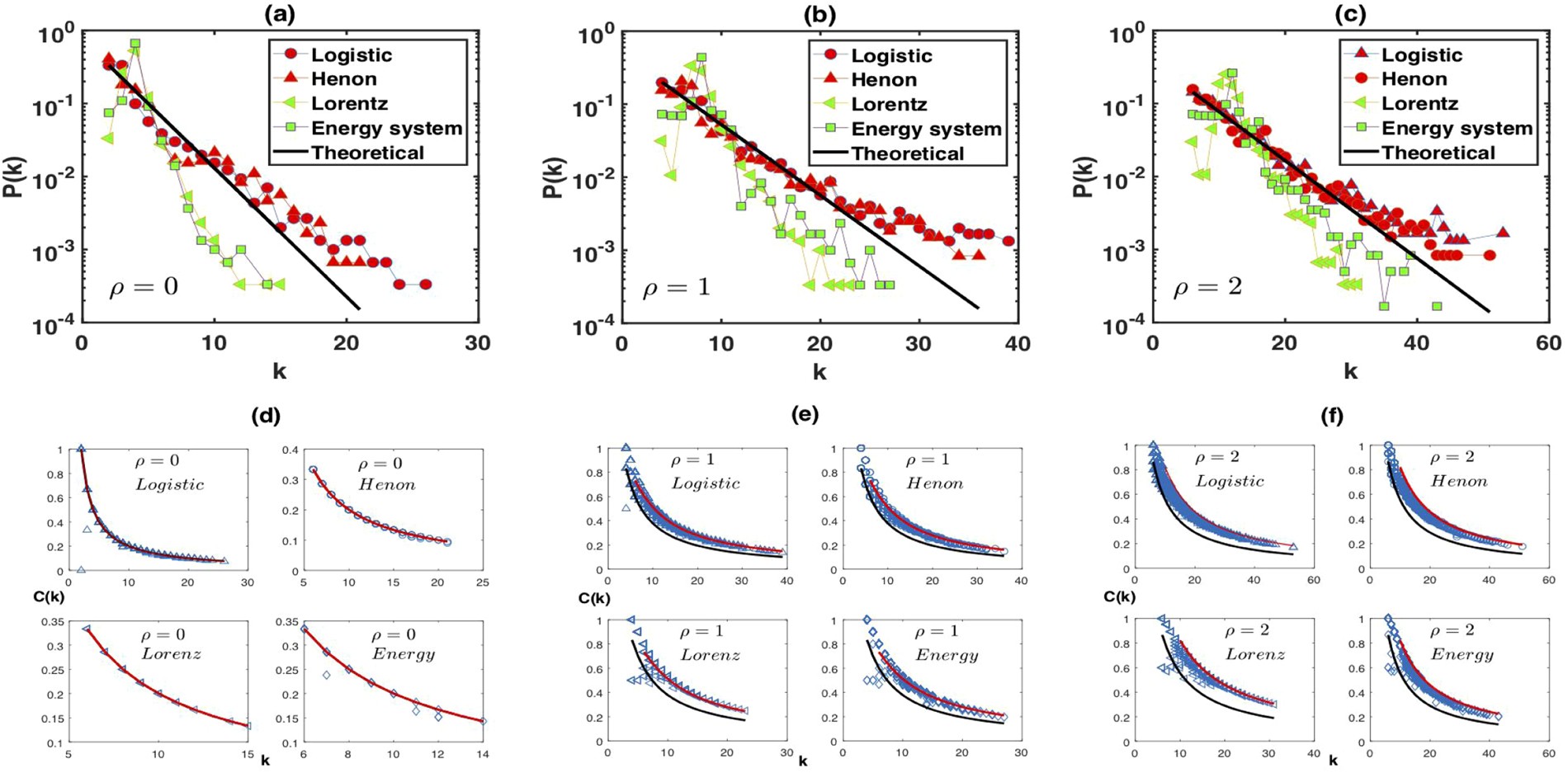

Numerical results for different chaotic series with semilog plots for the degree distributions of LPHVGs associated to series generated by Logistic map, Hénon map, Lorenz chaotic system and Energy price-supply-economic growth system. In (a) we have ρ = 0, (b) ρ = 1 and (c) ρ = 2. In bottom panels we show the relation between degree and clustering coefficient for (d) ρ = 0, (e) ρ = 1 and (f) ρ = 2. The solid black and red lines in these latter panels are the theoretical prediction of Cmin(k) and Cmax(k), respectively.
