Figure 3
From: Broadband acoustic subwavelength imaging by rapidly modulated stratified media

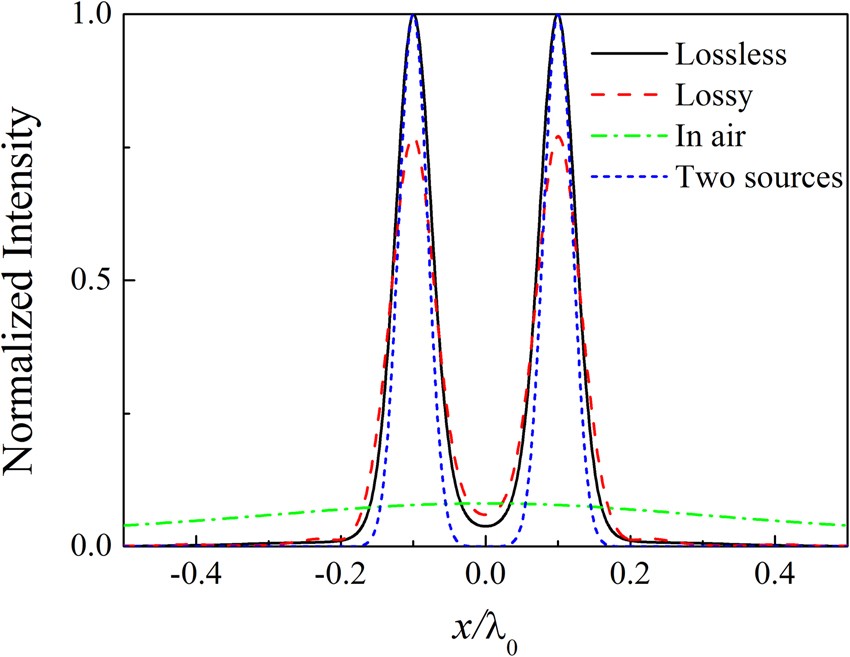

Acoustic intensity profile of images along x direction on the output surface of the AAL in the lossless and lossy cases based on TMM. The dotted line represents the two deep subwavelength Gaussian sources. The dash-dotted line represents the intensity profile at the same position for the case without the lens.
