Figure 1
From: Epigenetic Transgenerational Inheritance of Altered Sperm Histone Retention Sites

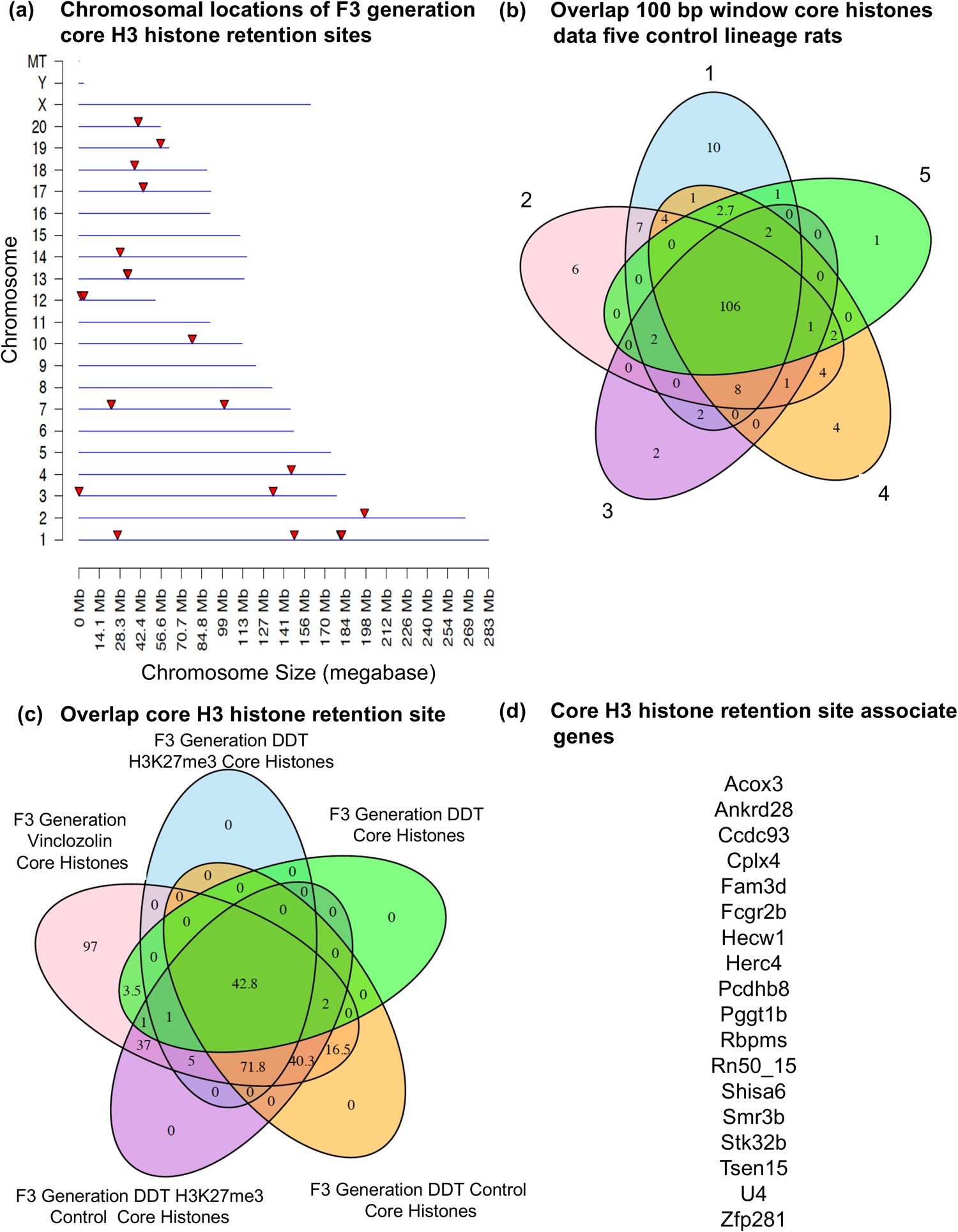

Sperm core histone retention sites. (a) Chromosomal locations of the core histone H3 retention sites in sperm identified with red arrowhead on different chromosomes. Only sites that overlap in all samples are shown. (b) Comparison of sperm core histone retention sites between five different control lineage rats. The Venn diagram shows the overlap between sperm from five different rats for significant 100 bp windows of histone retention sites. The sites are defined using a read depth threshold of 150. (c) Overlap of core histone retention sites between the F3 generation DDT H3K27me3, DDT, vinclozolin and associated control core histones. (d) List of core histone site associated genes.
