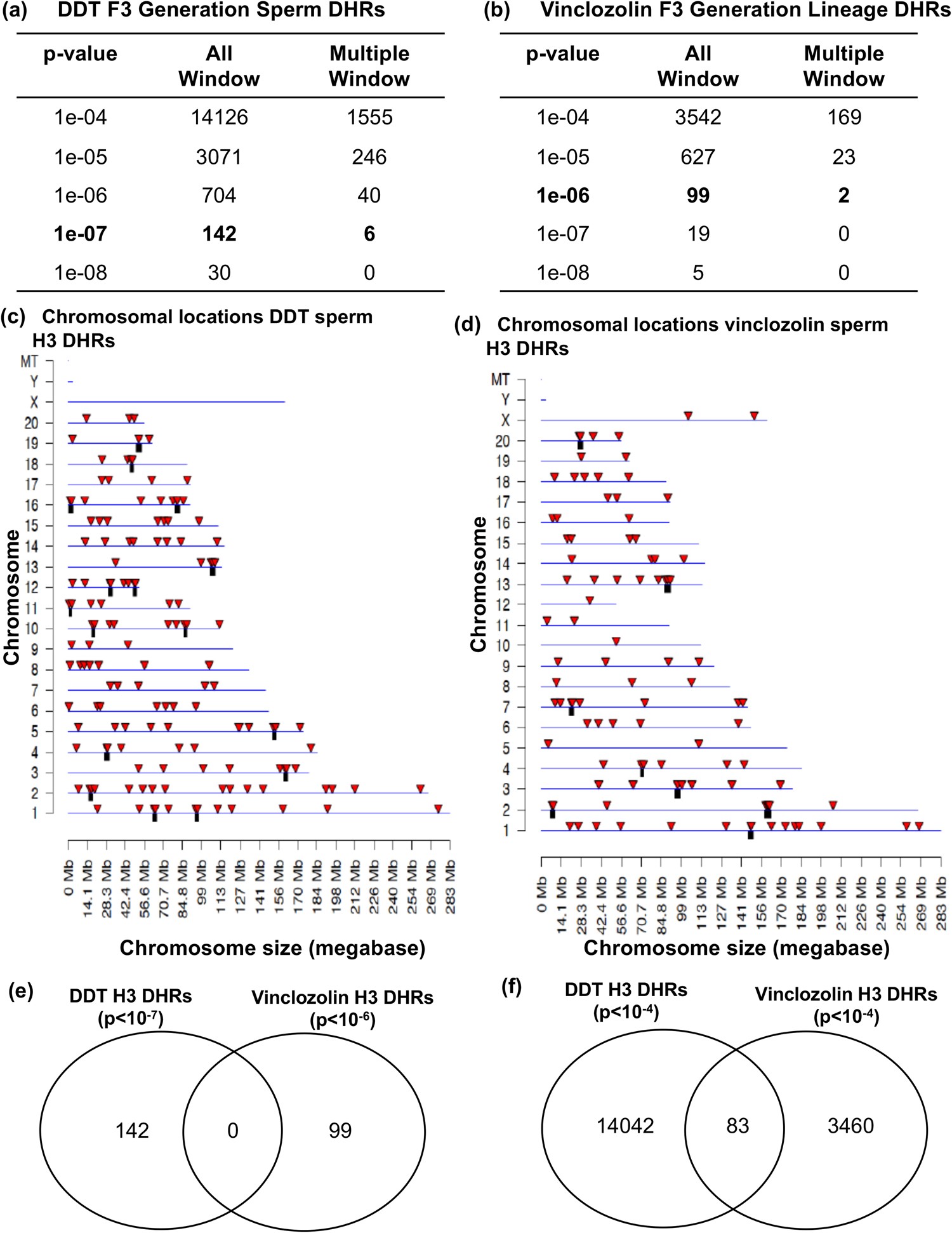

Figure 2
From: Epigenetic Transgenerational Inheritance of Altered Sperm Histone Retention Sites
Sperm differential histone retention sites (DHRs). (a) DDT F3 generation sperm DHRs and (b) vinclozolin F3 generation lineage DHRs. The number of DHRs found using different p-value cutoff thresholds. The all window column shows all DHRs. The multiple window column shows the number of DHRs containing at least two significant windows. (c) DDT sperm DHR locations on the individual chromosomes. All DHRs at a p-value threshold of 1e-07 are shown. (d) Vinclozolin sperm DHR locations on the individual chromosomes. All DHRs at a p-value threshold of 1e-06 are shown. (e) Overlapping DMRs between the generation sperm DHRs F3 using p < 1e-06 for the vinclozolin results and p < 1e-07 for the DDT. (f) Overlapping DHRs between the two F3 generation DHRs using p < 1e-04 for the vinclozolin and p < 1e-04 for the DDT.
