Figure 4
From: Epigenetic Transgenerational Inheritance of Altered Sperm Histone Retention Sites

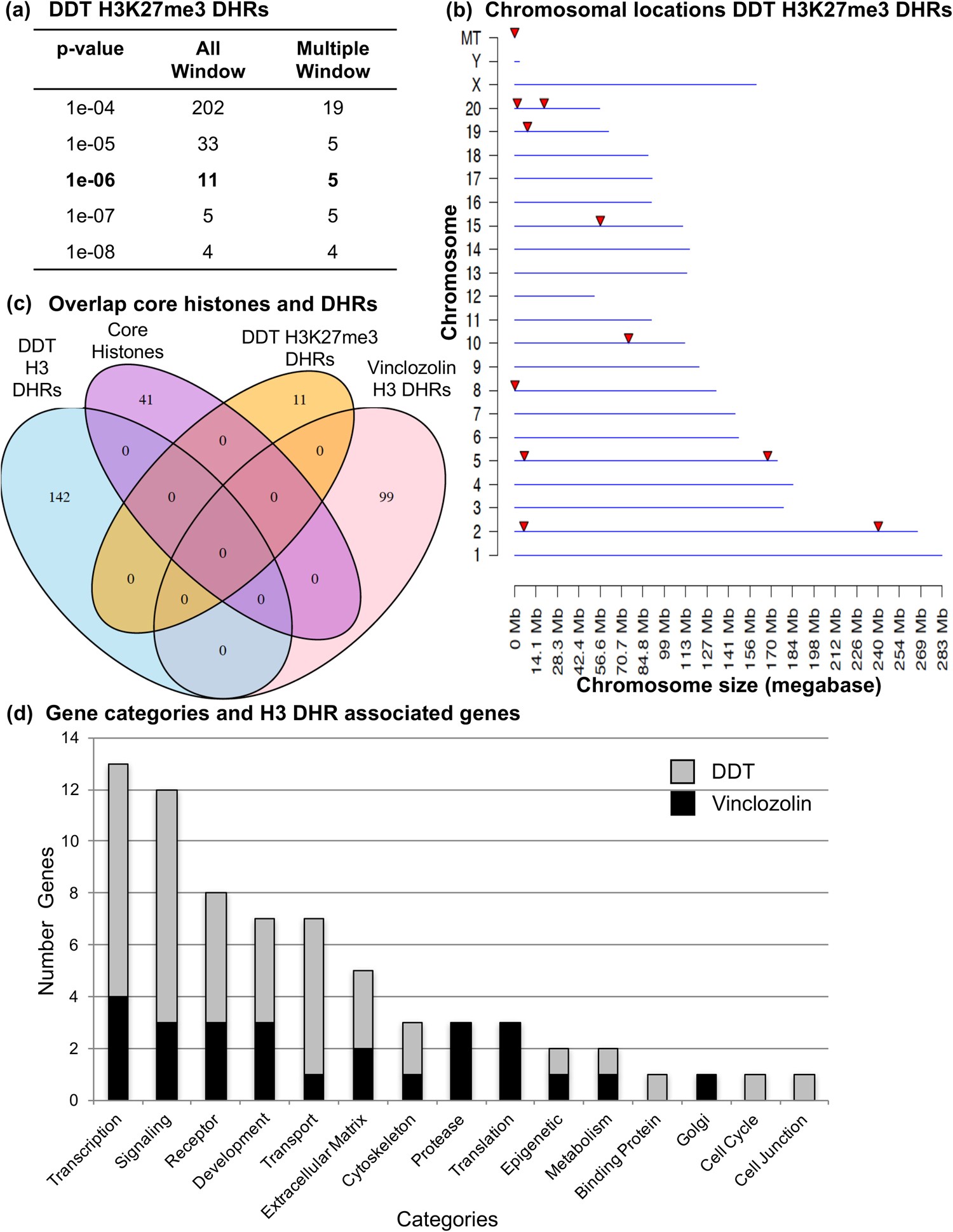

DDT sperm H3K27me3 DHRs. (a) The number of H3K27me3DHRs found using different p-value cutoff thresholds. The all window column shows all DHRs. The multiple window column shows the number of DHRs containing at least two significant windows. (b) Chromosomal DDT H3K27me3 DHRs locations on the individual chromosomes. All DHRs indicated with arrowheads at a p-value threshold of 1e-06 are shown. (c) Overlap of the core histones and the DDT H327me3 DHRs and the DDT or vinclozolin F3 generation sperm DHRs. (d) DHR associated gene categories and DHR associated genes for DDT DHRs (gray bar) and vinclozolin DHRs (black bar) with the number of genes versus the specific gene categories presented.
