Figure 2
From: Genome plasticity is governed by double strand break DNA repair in Streptomyces

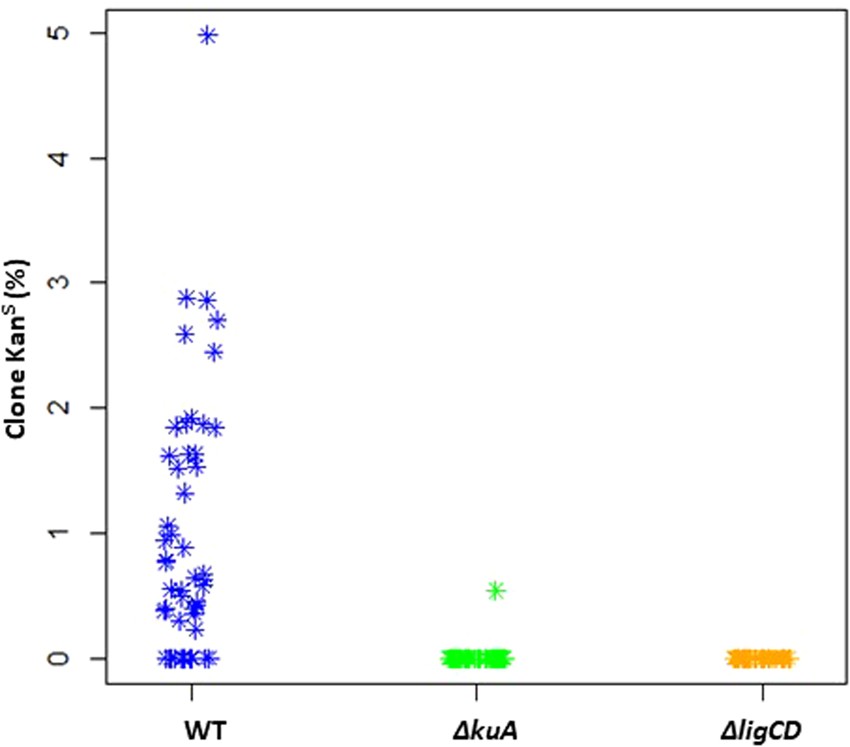

Kanamycin sensitive (KanS) clones appearance after DSB generation at IKI-C. Proportion of KanS clones obtained in each independent lineage (symbolized by a flake) of WT, ∆kuA and ∆ligCD contexts. For each of the 50 lineages, an average of 230 clones was analyzed by replica-plating with and without kanamycin.
