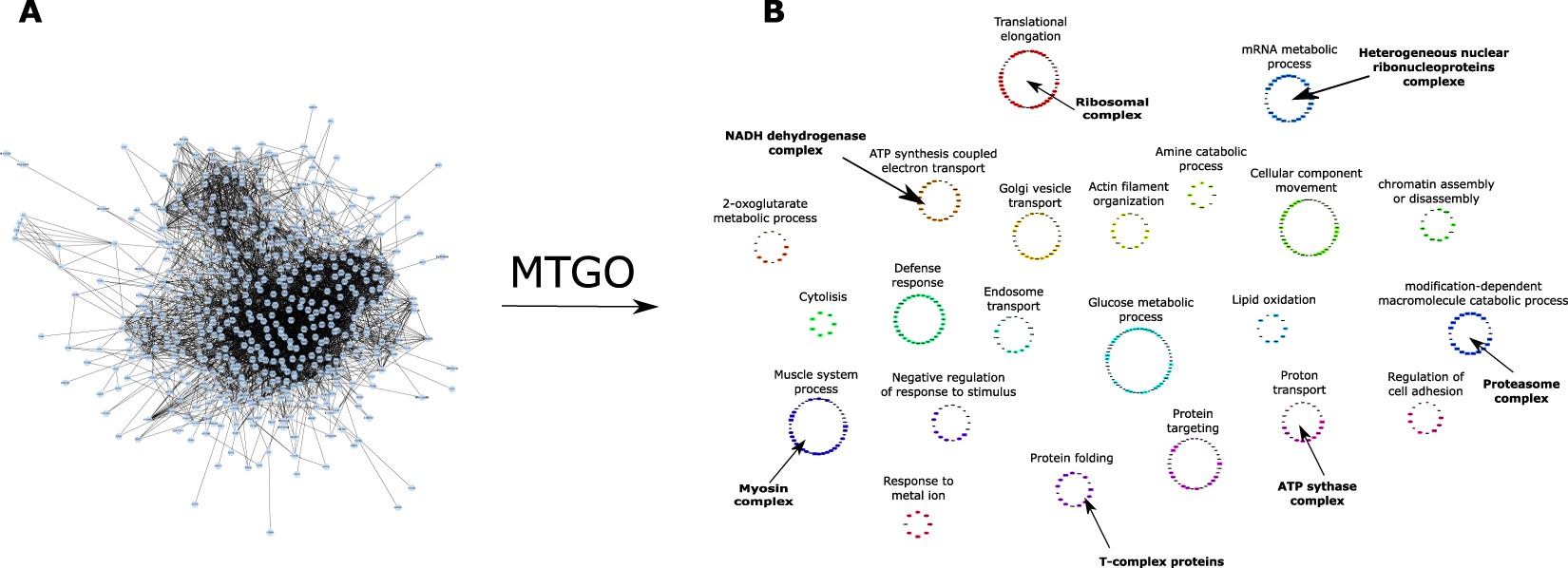

Application of MTGO algorithm to process an experimentally-derived PPI network. (A) Myocardial infarction PPI network consisting in 502 nodes and 4316 physical interactions. The network structure derives from Cytoscape following the application of the Organic layout. (B) Myocardial infarction PPI network following MTGO algorithm. Circular modules shown in panel (B) correspond to topological modules obtained by MTGO (Supplementary Table S3), each one is tagged with the corresponding GO term. Finally, the protein complexes associated with the assigned GO terms are indicated in bold. Node details are explained in Supplementary Figure 6.
