From: Non-neutralizing Antibody Responses against VP1 in Enterovirus A, B, C and Rhinovirus A species among Infants and Children in Shanghai

Figure 4

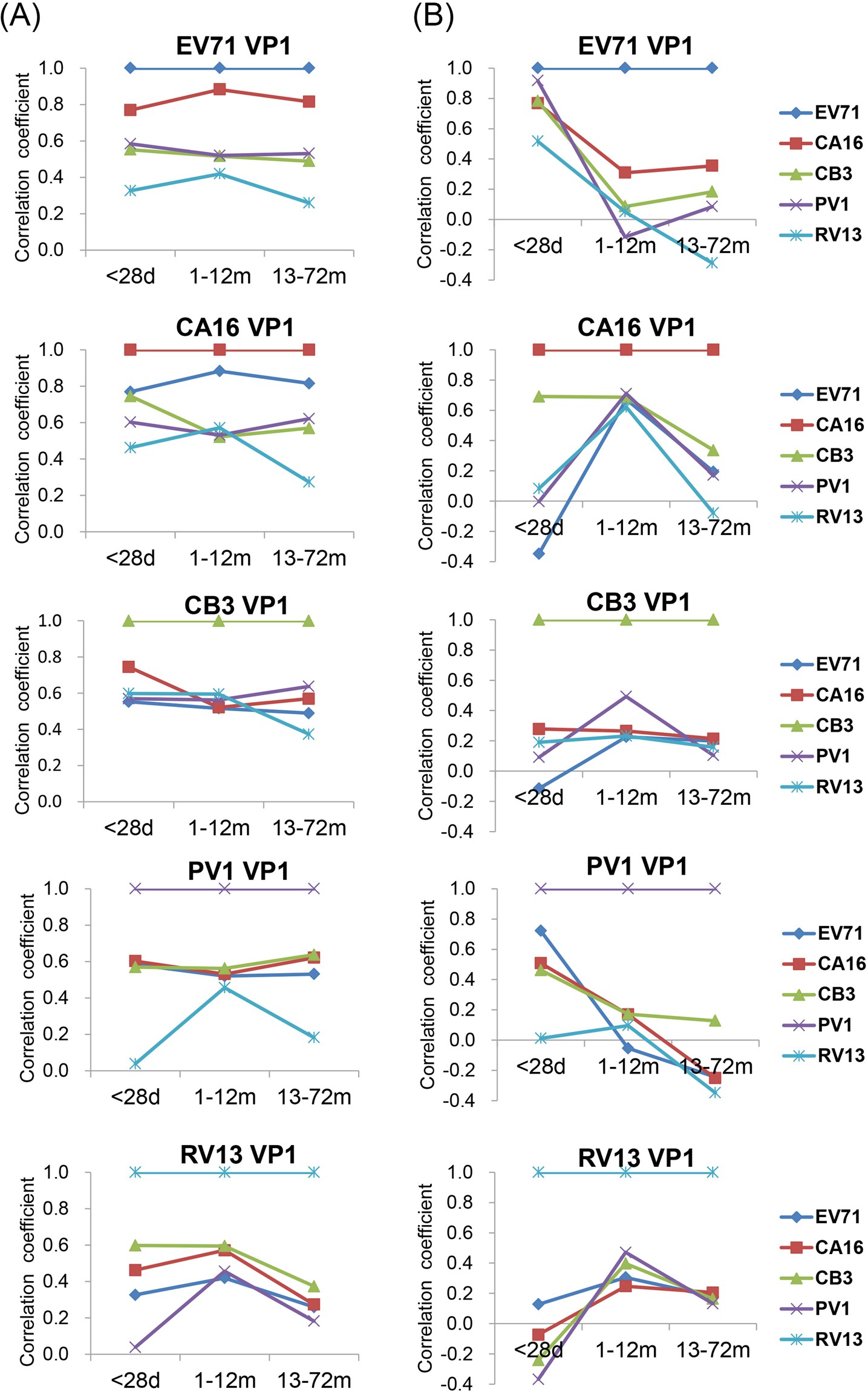

Comparison of the correlation analyses between five assessed EV VP1 proteins based on antibody responses or inhibition to anti-VP1 reactions by various EV VP1 proteins in three age groups (1–28-day, 1–12-month and 13–72-month age groups). (A) Correlation analysis of antibody reactivity against VP1 of EV71, CA16, CB3, PV1 and RV13 in three age groups. (B) Correlation analysis of inhibition to the anti-VP1 reactions of five assessed EVs, EV71, CA16, CB3, PV1 or RV13 by various VP1 proteins in three age groups.
